RFK-OEM-WTMR-3-11

Retrofit Kit for 3' (0.9M) Parabolic, Upgrade Existing Direct Mount to Aviat WTM4100, 10.7 to 11.7 GHz

Aviat, WTM4101

The Parabolic Reflector Retrofit Kits by RadioWaves allow previously deployed Antennas to be upgraded to the latest radios on the market. These kits come with new feed horns, interface, and mounting hardware needed for rapid installation, under budget!


The RFK-OEM-WTMR-3-11 will allow you to directly interface an existing direct mount HP3 parabolic antenna to an Aviat WTM4100 series radio. This kit is designed for 3 ft | 0.9 m reflectors to be coupled with radios operating from 10.7 GHz to 11.7 GHz Frequency range with Single Polarization Rectanglular waveguide interface. If it’s rugged, it must be RadioWaves!

RFK-OEM-WTMR-3-11

General Specifications

Antenna Type Parabolic Reflector Retrofit Kit
Size, nominal 3 ft | 0.9 m
Waveguide Rectanglular
Radio Manufacturer Aviat
Polarization Single

Electrical Specifications

Operating Frequency Band 10.7 GHz to 11.7 GHz

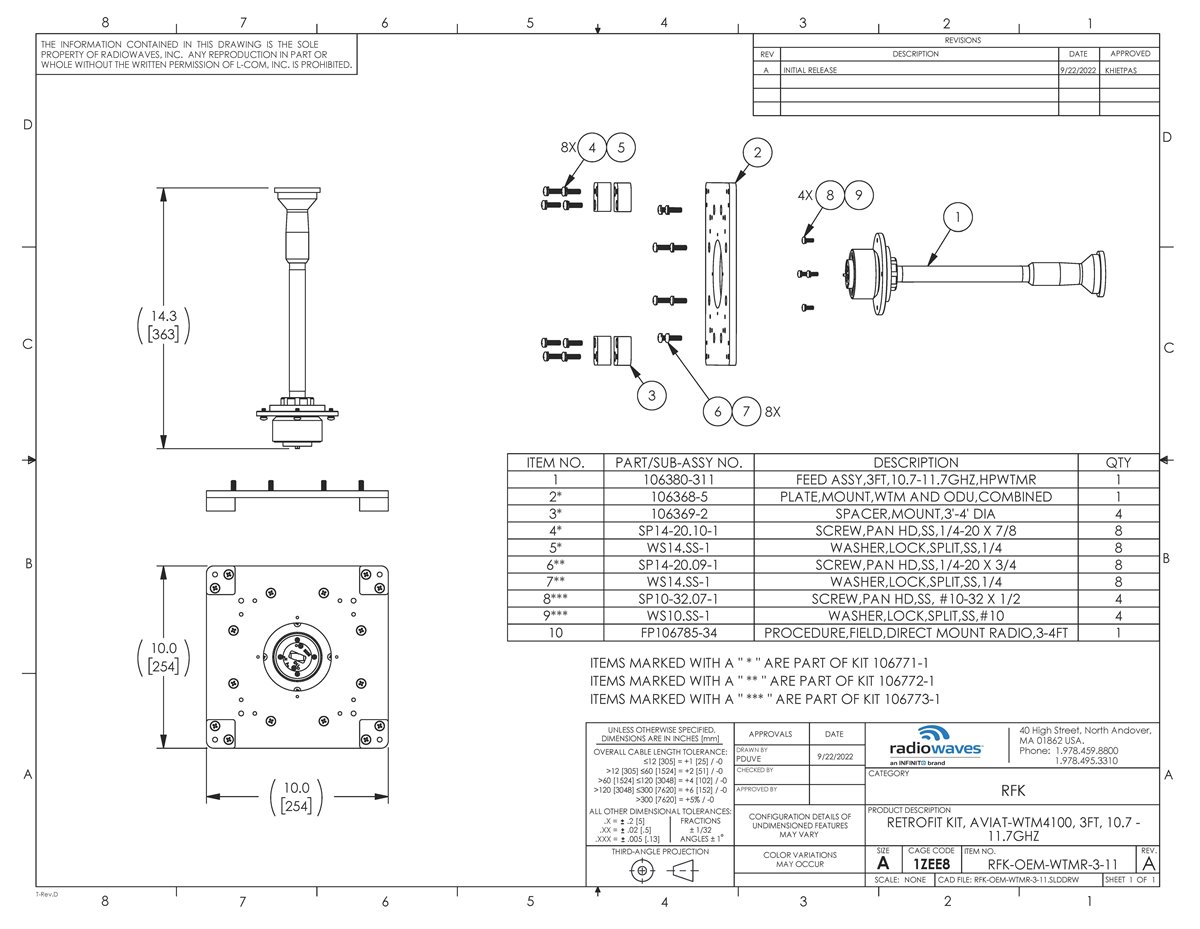

Technical Drawings

RFK-OEM-WTMR-3-11_revA
Click to enlarge tooltip
