RFK-OEM-MMS-3-11

Retrofit Kit for 3' (0.9M) Parabolic, Upgrade Existing Direct Mount to Mimosa B11, 10.7 to 11.7 GHz

Mimosa

The Parabolic Reflector Retrofit Kits by RadioWaves allow previously deployed Antennas to be upgraded to the latest radios on the market. These kits come with new feed horns, interface, and mounting hardware needed for rapid installation, under budget!



The RFK-OEM-MMS-3-11 will allow you to directly interface an existing direct mount HP3 parabolic antenna to a Mimosa B11 series radio. This kit is designed for 3 ft | 0.9 m reflectors to be coupled with radios operating from 10.7 GHz to 11.7 GHz Frequency range with Dual Polarization Circular waveguide interface. If it’s rugged, it must be RadioWaves!



Download Spec Sheet
RFK-OEM-MMS-3-11


General Specifications


Antenna Type Parabolic Reflector Retrofit Kit
Size, nominal 3 ft | 0.9 m
Waveguide Circular
Radio Manufacturer Mimosa
Polarization Dual


Electrical Specifications


Operating Frequency Band 10.7 GHz to 11.7 GHz

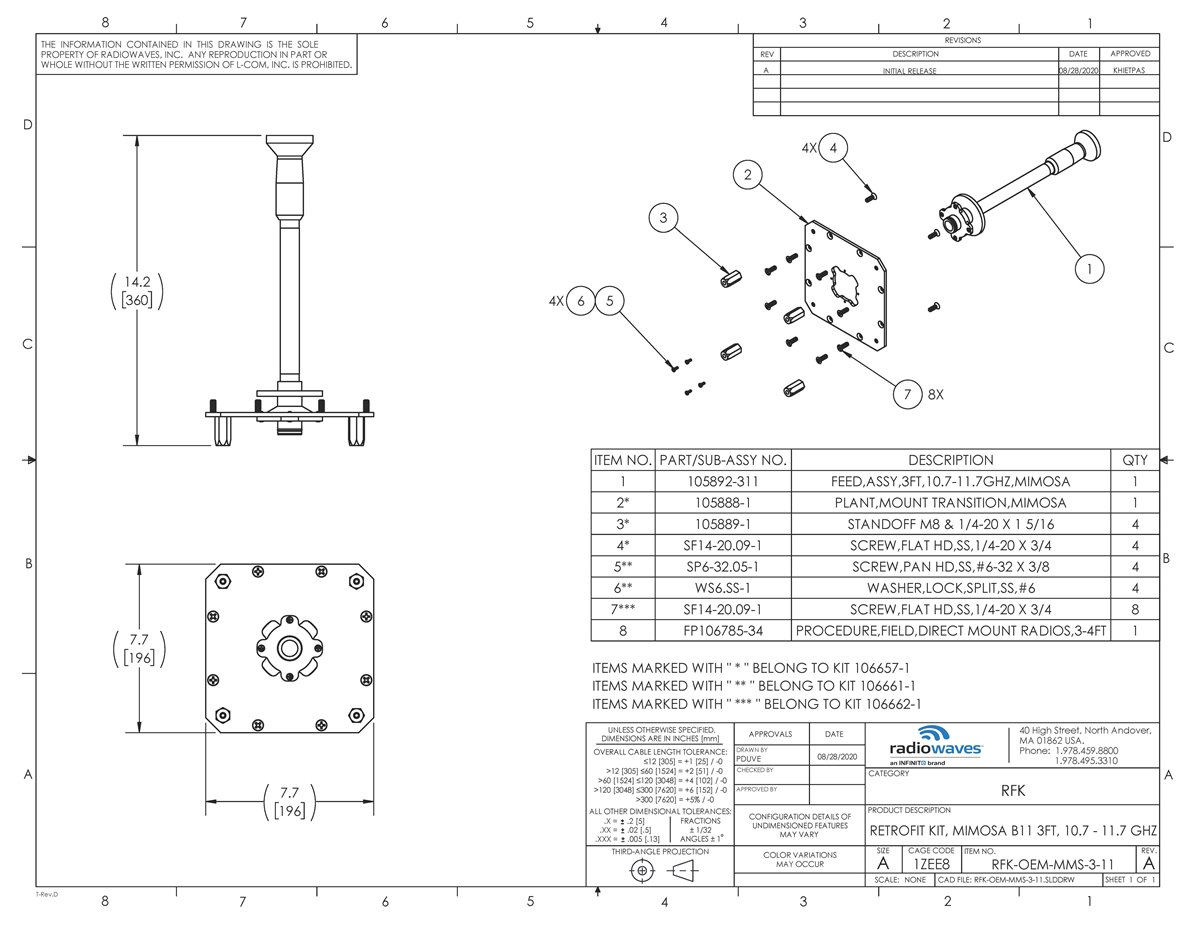

Technical Drawings

RFK-OEM-MMS-3-11_revA
Click to enlarge tooltip
