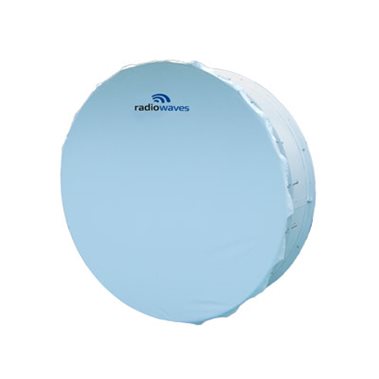

1.8 m | 6 ft Super High Performance Parabolic Reflector Antenna, Dual-polarized, 6.425-7.125GHz, SHPD6-6.4

1.8 m | 6 ft Super High Performance Parabolic Reflector Antenna, Dual-polarized, 6.425-7.125GHz

The SHP Ultra High Performance Series by RadioWaves offers ultra high performance parabolic antennas engineered to provide ETSI class 3 radiation pattern performance, with exceptional front/back ration as well as excellent gain. SHP Parabolics include high performance radomes. RadioWaves field-proven antennas and robust pole-mounts ensure “set and forget” installation with minimal post-installation maintenance. If it’s rugged, it must be RadioWaves!

FEATURES AND BENEFITS
O High Performance ETSI Class 3 Parabolic Antennas with exceptional front/back ratio – Excellent performance for a wide range of applications
O Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality

Download Spec Sheet

General Specifications

Antenna Type

Super High Performance Parabolic Reflector Antenna

Size, nominal

6 ft | 1.8 m

Polarization

Dual

Electrical Specifications

Operating Frequency Band

6.425 - 7.125 GHz

Half Power Beamwidth, Horizontal

1.9 degrees

Half Power Beamwidth, Vertical

1.9 degrees

Cross-Polarization Discrimination

30 dB

Front to Back Ratio (F/B)

72 dB

Gain, Low Frequency

38.7 dBi

Gain, Mid Frequency

38.9 dBi

Gain, High Frequency

39.2 dBi

VSWR

1.30:1

Return Loss

-17.1 dB

Mechanical Specifications

Fine Azimuth Adjustment

+/- 10 degrees

Fine Elevation Adjustment

+/- 10 degrees

Mounting Pipe Diameter, Min

4.5 inch | 11.4 cm

Mounting Pipe Diameter, Max

4.5 inch | 11.4 cm

Net Weight

251 lbs | 113 kg

Wind Velocity Operational

90 mph | 145 km/h

Wind Velocity Survival Rating

125 mph | 201 km/h

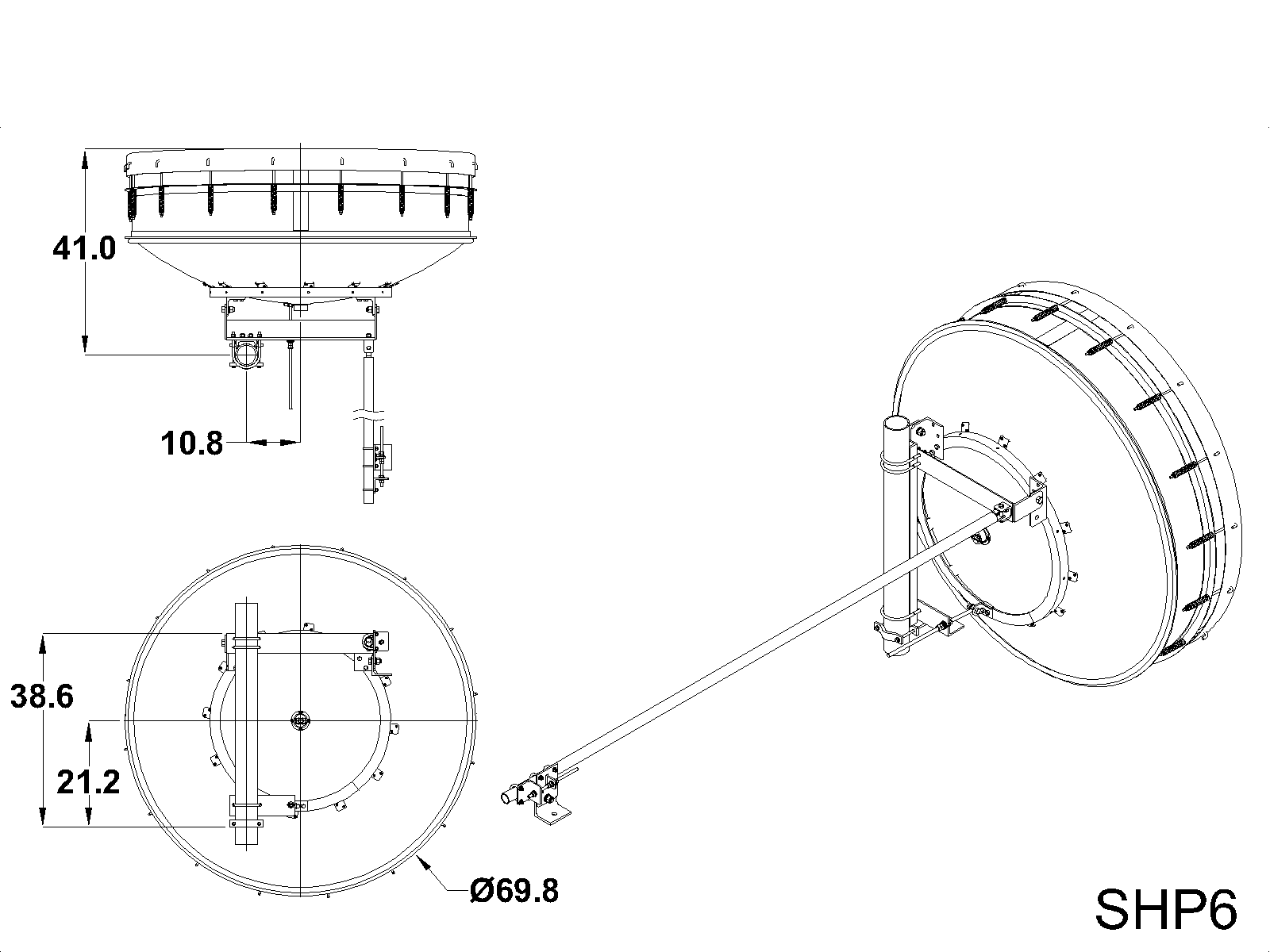

Mechanical Configuration

SHP6

Axial Force (FA)

1680 lbs | 7473 N

Side Force (FS)

832 lbs | 3700 N

Twisting Moment (MT)

2100 ft-lbs | 2847 Nm

Operating Temperature Range

-40 to +60 C

Max Pressure, PSIG, (if waveguide interface)

Regulatory Compliance

FCC

Part 101 Cat. A

Industry Canada Compliance

SRSP306.4 A, SRSP306.7

ETSI

302217 R1 C3

RoHS-compliant

Yes

Shipping Information

Package Type

Wood Crate

Gross Weight

403 lbs | 182.8 kg

Dimensions, L x W x H

77 x 35 x 80in | 195 x 89 x 203 cm

Shipping Volume

124.77 cu ft | 3.53 cu m

Additional Comments

*Additional OEM interfaces and adapters may be available. Contact RadioWaves for a complete and current list of available adapters.
