SEC-4.7D-90-16

90 Degree, 16 dBi Sector Antenna, Dual H & V-polarized, 4.4-5GHz

The SEC Sectors Series by RadioWaves offers a full line of high performance sector antennas engineered to provide a broad selection of beamwidths (40, 60, 90, 120 degrees) as well as excellent gain.  RadioWaves field-proven pre-assembled antennas and robust easy to install mounting system ensure “set and forget” installation with minimal post-installation maintenance.  If it’s rugged, it must be RadioWaves!

FEATURES AND BENEFITS
O High Performance Sector Antennas – Excellent performance for a wide range of applications
O Fully Preassembled at the Factory – Simplifies installation on site and guarantees “factory-tested” quality

Download Spec Sheet
SEC-4.7D-90-16

General Specifications

Antenna Type
Sector Antenna
Size, nominal
3.458 ft | 1.054 m
Polarization
Dual H & V

Electrical Specifications

Operating Frequency Band
4.4 - 5 GHz
Half Power Beamwidth, Horizontal
90 degrees
Half Power Beamwidth, Vertical
8 degrees
Cross-Polarization Discrimination
25 dB
Front to Back Ratio (F/B)
30 dB
Gain, Low Frequency
15.4 dBi
Gain, Mid Frequency
16 dBi
Gain, High Frequency
16.5 dBi
VSWR
1.5:1
Return Loss
-14 dB

Mechanical Specifications

Fine Azimuth Adjustment
Supplied with coarse az adjust only
Fine Elevation Adjustment
+/- 5 degrees
Mounting Pipe Diameter, Min
2 inch | 5.1 cm
Mounting Pipe Diameter, Max
4.5 inch | 11.4 cm
Net Weight
7 lbs | 3.2 kg
Wind Velocity Operational
90 mph | 145 km/h
Wind Velocity Survival Rating
125 mph | 201 km/h
Mechanical Configuration
SEC2
Axial Force (FA)
139 lbs | 619 N
Side Force (FS)
48 lbs | 214 N
Twisting Moment (MT)
0 ft-lbs | 0 Nm
Operating Temperature Range
-40 to +60 C
Max Pressure, PSIG, (if waveguide interface)
na

Regulatory Compliance

FCC
undeclared
Industry Canada Compliance
undeclared
ETSI
undeclared
RoHS-compliant
Yes

Shipping Information

Package Type
Cardboard
Gross Weight
8 lbs | 3.6 kg
Dimensions, L x W x H
13 x 44 x 9in | 33 x 112 x 23 cm
Shipping Volume
3 cu ft | 0.08 cu m

Additional Comments

*Additional OEM interfaces and adapters may be available. Contact RadioWaves for a complete and current list of available adapters.

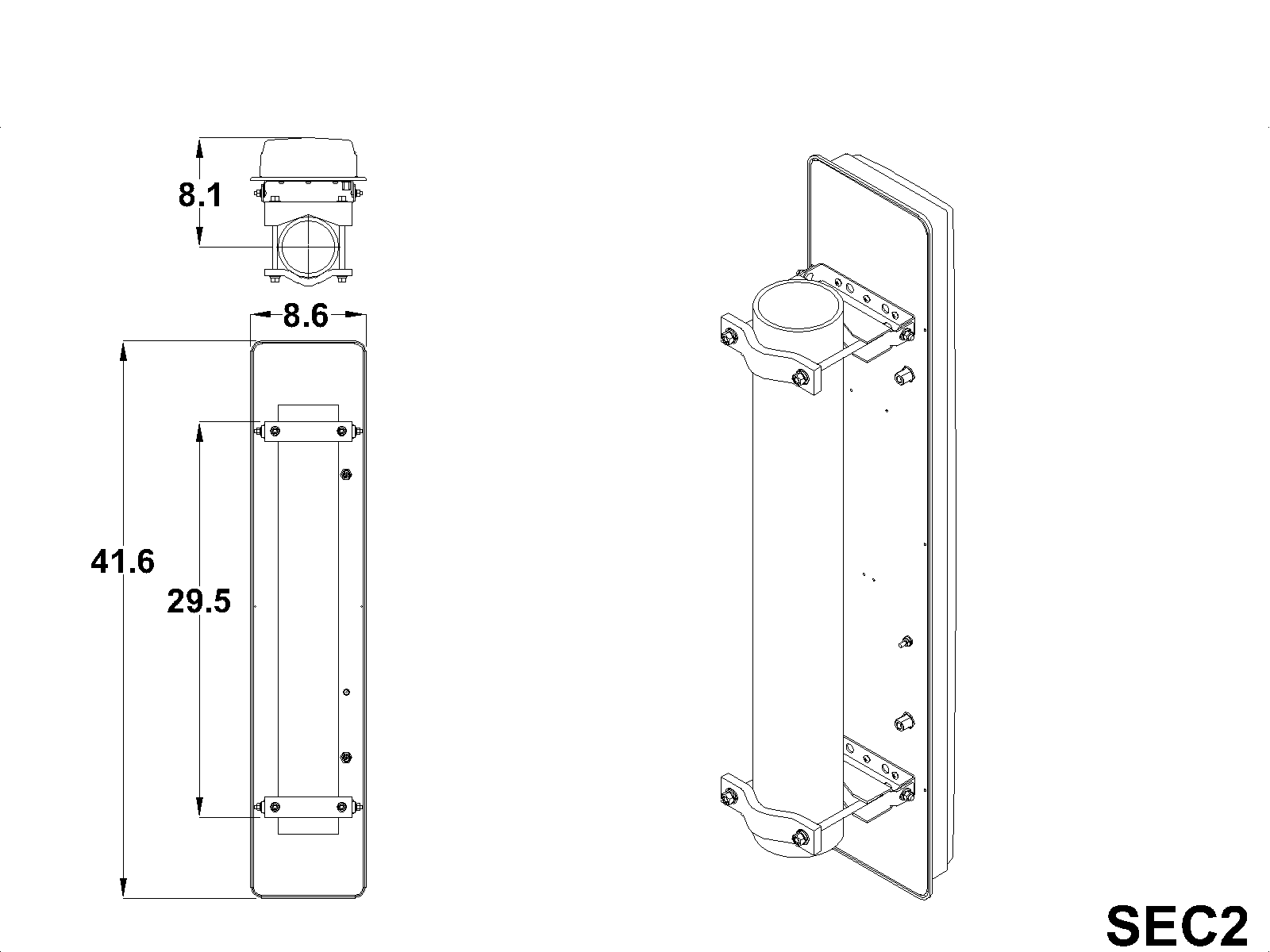

Technical Drawings

OL-SEC2
Click to enlarge tooltip
