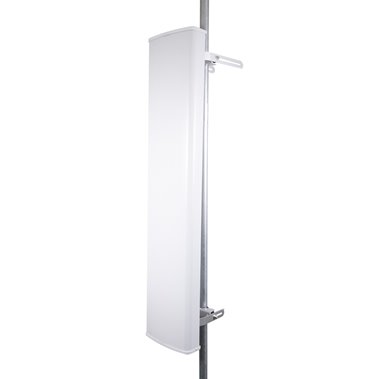

SEC-3.5DX8-65-18

0.9 m | 3ft. Sector Antenna, Slant +/-45 polarized, 3.3 to 4.2 GHz

SEC-3.5DX8-65-18, SEC-3.5DX8-65-18

The SEC-3.5DX8-65-18 3.5 GHz 8-port Sector Antenna from RadioWaves with Type N connectors provides industry leading gain, side lobes suppression, and high front to back ratio. The SEC-3.5DX8-65-18 has 18 dBi gain with 65° beamwidth and is perfectly suited for macro base station or small cell deployments. Available in dual +/-45 slant polarization, this antenna works from 3.3 GHz – 4.2 GHz.

The 8 Type N connectors make 2x2, 4x4, and 8x8 mimo configurations possible for high speeds or multiple technology deployments. The RadioWaves SEC-3.5DX8-65-18 sector antenna patterns are engineered to be symmetric in both polarizations. The sector antenna’s 15 dB side lobe suppression and 30 dB front to back ratio allows for channel (frequency) reuse and can reach high levels of spectral efficiency in the most challenging and noisy environments.

The 3300 to 4200 MHz SEC-3.5DX8-65-18 sector antenna with 8 x N-type female connector has Universal radio brackets that are compatible with many popular radios. Our expert technical support and friendly, knowledgeable customer service personnel are available to assist you with your multiport macro base station antenna needs. The RadioWaves SEC-3.5DX8-65-18 is in stock and ready to ship the same day.

Features:

  • 17 to 18 dBi gain
  • Superior port isolation, cross polarization discrimination, gain, VSWR, and front-to-back
  • 3300 to 4200 MHz for world-wide markets
  • 30 dB Front to Back Ratio
  • Eight (8) N Female Connectors
  • Heavy-duty aluminum brackets with powder coated steel hardware
  • Universal radio bracket with quick-release slot/clip design is compatible with many AP radios

Applications

  • 3.5 GHz Citizens Broadband Radio Service (CBRS) applications
  • Extended CBRS for 4.2 GHz (EMEA and UK) use
  • Wireless LAN systems & IEEE 802.16e applications
  • Mobile WiMAX Wireless Internet Provider "cell" sites
  • SOFDMA
  • Outdoor or indoor point-to-point (PtP) or point-to-multipoint (PtMP) in CBRS band
  • For use in LTE and 5G bands n42, n43, n48, n49, n52, n77 and n78
  • 4x4 and 8x8 MIMO ready



Download Spec Sheet
SEC-3.5DX8-65-18

General Specifications

Antenna Type
Sector Antenna
Size, nominal
3 ft | 0.9 m
Polarization
Slant 45 +/-

Electrical Specifications

Operating Frequency Band
3.3 - 4.2 GHz
Half Power Beamwidth, Horizontal
65 degrees
Half Power Beamwidth, Vertical
6.5 degrees
Cross-Polarization Discrimination
15 dB
Front to Back Ratio (F/B)
30 dB
Gain, Low Frequency
17.5 dBi
Gain, Mid Frequency
17.7 dBi
Gain, High Frequency
18 dBi
VSWR
2.0:1
Return Loss
-10 dB
Port to Port Isolation, Max (dB)
25 dB
Electrical Downtilt, Degrees
3.5 degrees
Input Power per Port, Max (Watts)
100 Watts

Mechanical Specifications

Fine Elevation Adjustment
+/- 5 degrees
Mounting Pipe Diameter, Min
2 inch | 5.1 cm
Mounting Pipe Diameter, Max
4.5 inch | 11.4 cm
Net Weight
0 lbs | 0 kg
Wind Velocity Operational
90 mph | 145 km/h
Wind Velocity Survival Rating
125 mph | 201 km/h
Mechanical Configuration
SEC-3.5DX8
Axial Force (FA)
13 lbs | 58 N
Side Force (FS)
13 lbs | 58 N
Operating Temperature Range
-40 to +60 C

Regulatory Compliance

Industry Canada Compliance
undeclared
RoHS-compliant
Yes

Shipping Information

Package Type
Cardboard
Gross Weight
27.2 lbs | 12.4 kg
Dimensions, L x W x H
55 x 12 x 8in | 139.7 x 30.48 x 20.32 cm
Shipping Volume
3.1 cu ft | 0.09 cu m

Additional Comments

8 type N connectors to support MIMO Operation

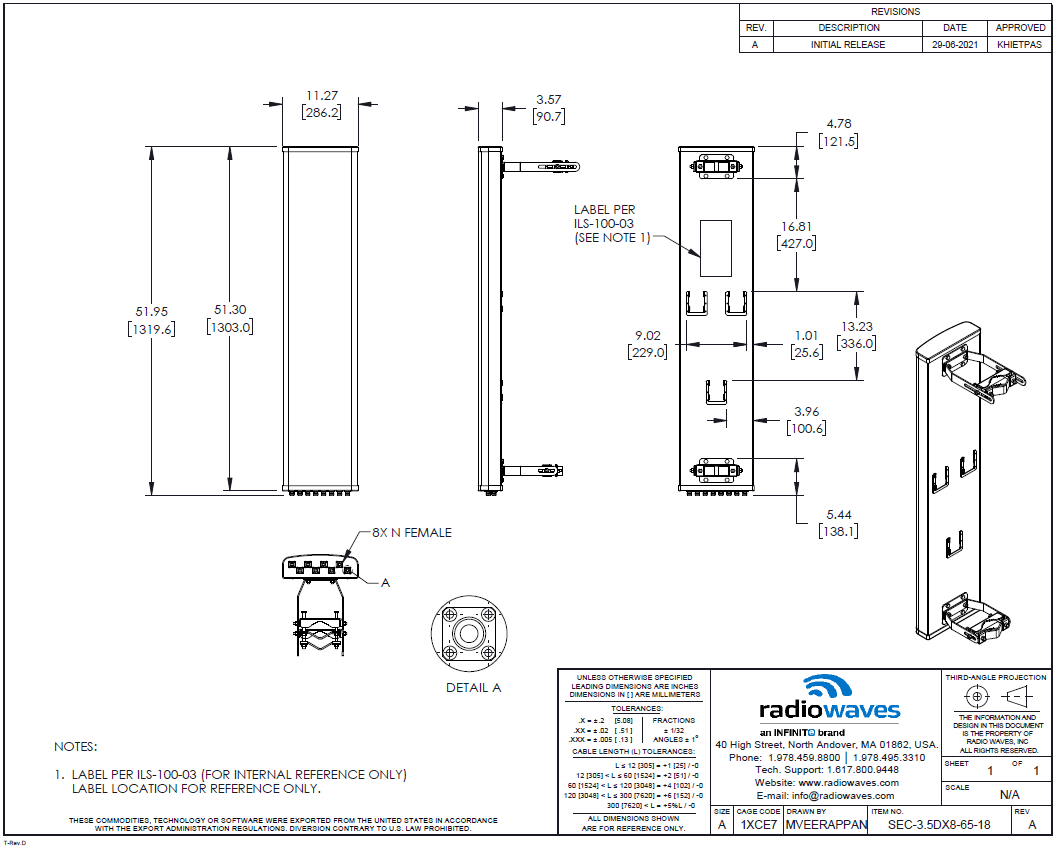

Technical Drawings

SEC-3-5DX8
