RFK-OEM-G2-4-23

Retrofit Kit for 4' (1.2M) Parabolic, Upgrade Existing Direct Mount to Ceragon or Cambium, 21.2 to 23.6 GHz

Ceragon, Cambium

The Parabolic Reflector Retrofit Kits by RadioWaves allow previously deployed Antennas to be upgraded to the latest radios on the market. These kits come with new feed horns, interface, and mounting hardware needed for rapid installation, under budget!


The RFK-OEM-G2-4-23 will allow you to directly interface an existing direct mount HP4 parabolic antenna to a Ceragon or Cambium series radio. This kit is designed for 4 ft | 1.2 m reflectors to be coupled with radios operating from 21.2 GHz to 23.6 GHz Frequency range with Single Polarization Rectangular waveguide interface. If it’s rugged, it must be RadioWaves!

Download Spec Sheet
RFK-OEM-G2-4-23

General Specifications

Antenna Type Parabolic Reflector Retrofit Kit
Size, nominal 4 ft | 1.2 m
Waveguide Rectangular
Radio Manufacturer Ceragon, Cambium
Polarization Single

Electrical Specifications

Operating Frequency Band 21.2 GHz to 23.6 GHz

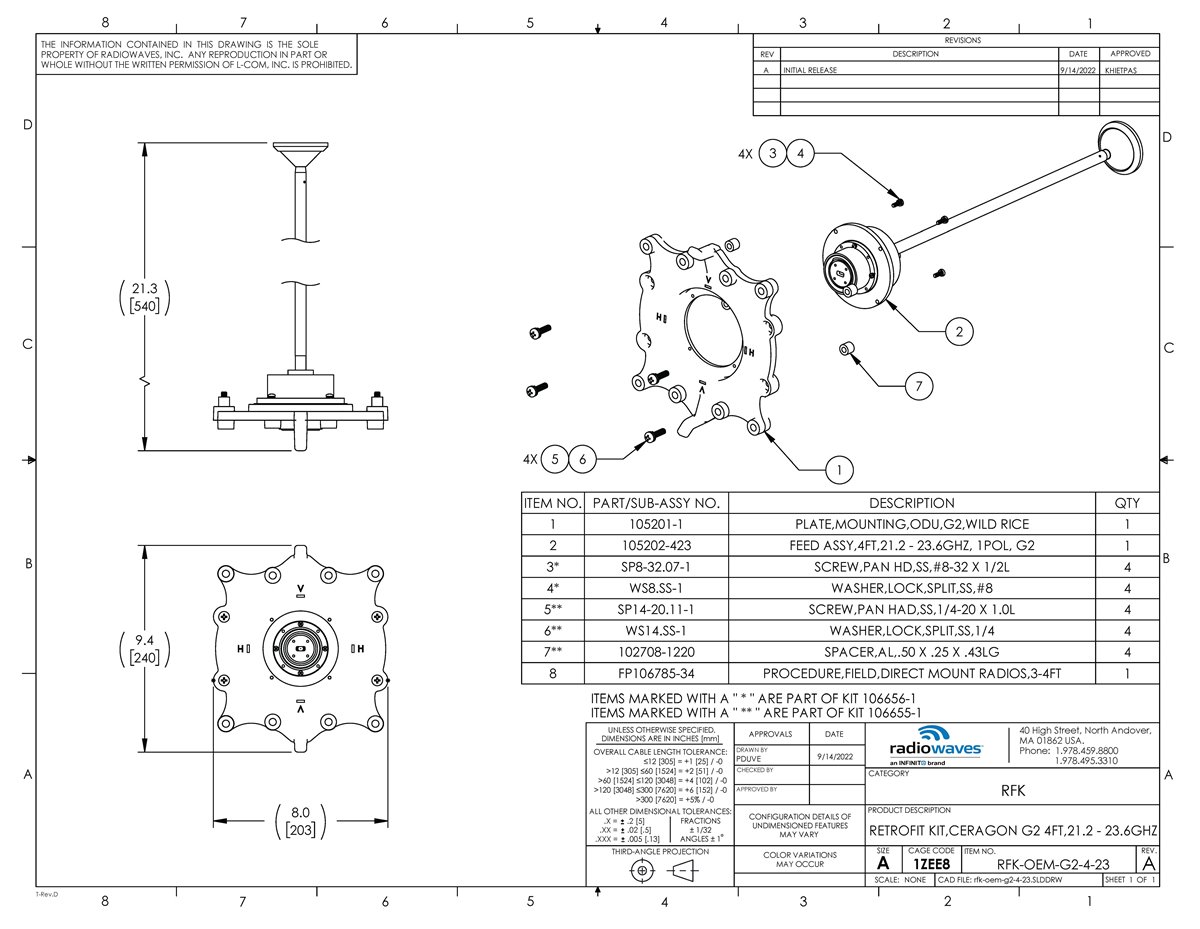

Technical Drawings

RFK-OEM-G2-4-23_revA
Click to enlarge tooltip
