RD3

Accessory: Radome, used with SP3 parabolic reflector antenna

Download Spec Sheet
RD3

General Specifications

Item
Accessory: Radome
Used With
SP3 parabolic reflector antenna

Comments

*Additional OEM interfaces and adapters may be available. Contact RadioWaves for a complete and current list of available adapters.

Electrical Specifications

Attenuation, 2 Ghz
0.2 dB
Attenuation, 5 Ghz
0.4 dB
Attenuation, 7 GHz
0.5 dB
Attenuation, 10 GHz
0.6 dB
Attenuation, 13 GHz
0.7 dB
Add to Antenna VSWR, Max, 2 GHz
0.02
Add to Antenna VSWR, Max, 5 GHz
0.02
Add to Antenna VSWR, Max, 7 GHz
0.02
Add to Antenna VSWR, Max, 10 GHz
0.03
Add to Antenna VSWR, Max, 13 GHz
0.04

Mechanical Specifications

Net Weight
9 lbs | 4 kg
Mechanical Configuration
RD
Operating Temperature Range
-40 to +60 C

Regulatory Compliance

RoHS-compliant
Yes

Shipping Information

Package Type
Cardboard
Gross Weight
9 lbs | 4 kg
Dimensions, L x W x H
37 x 37 x 13in | 94 x 94 x 33 cm
Shipping Volume
10.3 cu ft | 0.29 cu m

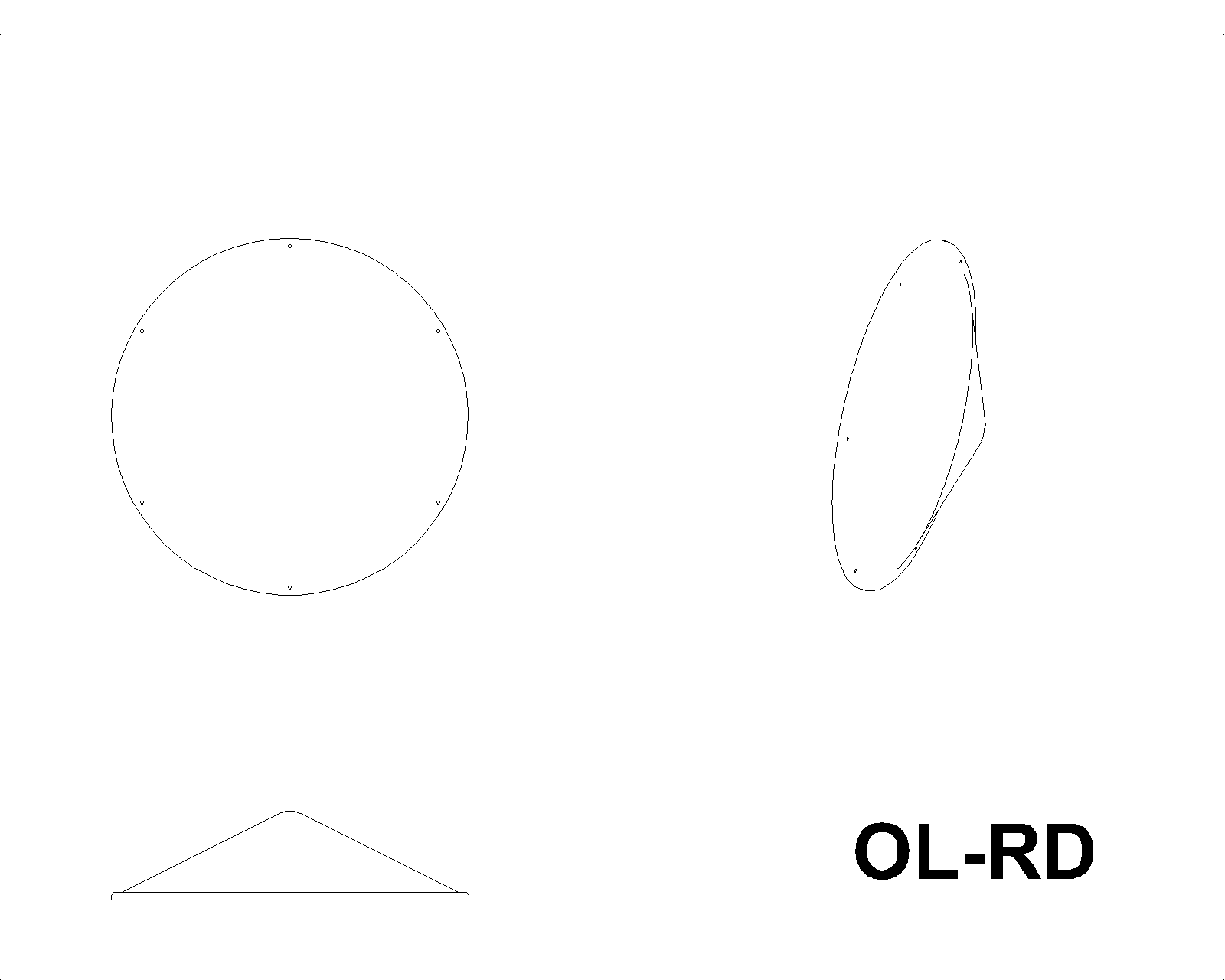

Technical Drawings

OL-RD
