HPD6-6.4

1.8 m | 6 ft High Performance Parabolic Reflector Antenna, Dual-polarized, 6.425-7.125GHz

HPD6-6.4, HPD6-6.4RS

The HP High Performance Series by RadioWaves offers a full line of high performance parabolic antennas engineered to provide ETSI class 2/3 radiation pattern performance as well as excellent gain.  RadioWaves field-proven pre-assembled antennas and robust pole-mounts ensure “set and forget” installation with minimal post-installation maintenance.  The included radome ensures robust and reliable performance under the most challenging conditions.  If it’s rugged, it must be RadioWaves!


FEATURES AND BENEFITS
O High Performance ETSI Class 2/3* Parabolic Antennas – Excellent performance for a wide range of applications
O Fully Preassembled at the Factory – Simplifies installation on site and guarantees “factory-tested” quality

*ETSI Class depends on frequency band

Download Spec Sheet
HPD6-6.4

General Specifications

Antenna Type
High Performance Parabolic Reflector Antenna
Size, nominal
6 ft | 1.8 m
Polarization
Dual

Electrical Specifications

Operating Frequency Band
6.425 - 7.125 GHz
Half Power Beamwidth, Horizontal
1.8 degrees
Half Power Beamwidth, Vertical
1.8 degrees
Cross-Polarization Discrimination
30 dB
Front to Back Ratio (F/B)
64 dB
Gain, Low Frequency
38.7 dBi
Gain, Mid Frequency
38.9 dBi
Gain, High Frequency
39.2 dBi
VSWR
1.37:1
Return Loss
-16.1 dB

Mechanical Specifications

Fine Azimuth Adjustment
+/- 10 degrees
Fine Elevation Adjustment
+/- 10 degrees
Mounting Pipe Diameter, Min
4.5 inch | 11.4 cm
Mounting Pipe Diameter, Max
4.5 inch | 11.4 cm
Net Weight
251 lbs | 113 kg
Wind Velocity Operational
90 mph | 145 km/h
Wind Velocity Survival Rating
125 mph | 201 km/h
Mechanical Configuration
HP6
Axial Force (FA)
1680 lbs | 7473 N
Side Force (FS)
832 lbs | 3700 N
Twisting Moment (MT)
2100 ft-lbs | 2847 Nm
Operating Temperature Range
-40 to +60 C
Max Pressure, PSIG, (if waveguide interface)
5

Regulatory Compliance

FCC
Part 101 Cat. A
Industry Canada Compliance
SRSP306.4 A, SRSP306.6
ETSI
302217 R1 C2
RoHS-compliant
Yes

Shipping Information

Package Type
Wood Crate
Gross Weight
401 lbs | 181.8 kg
Dimensions, L x W x H
77 x 35 x 80in | 195 x 89 x 203 cm
Shipping Volume
124.77 cu ft | 3.53 cu m

Additional Comments

*Additional OEM interfaces and adapters may be available. Contact RadioWaves for a complete and current list of available adapters.

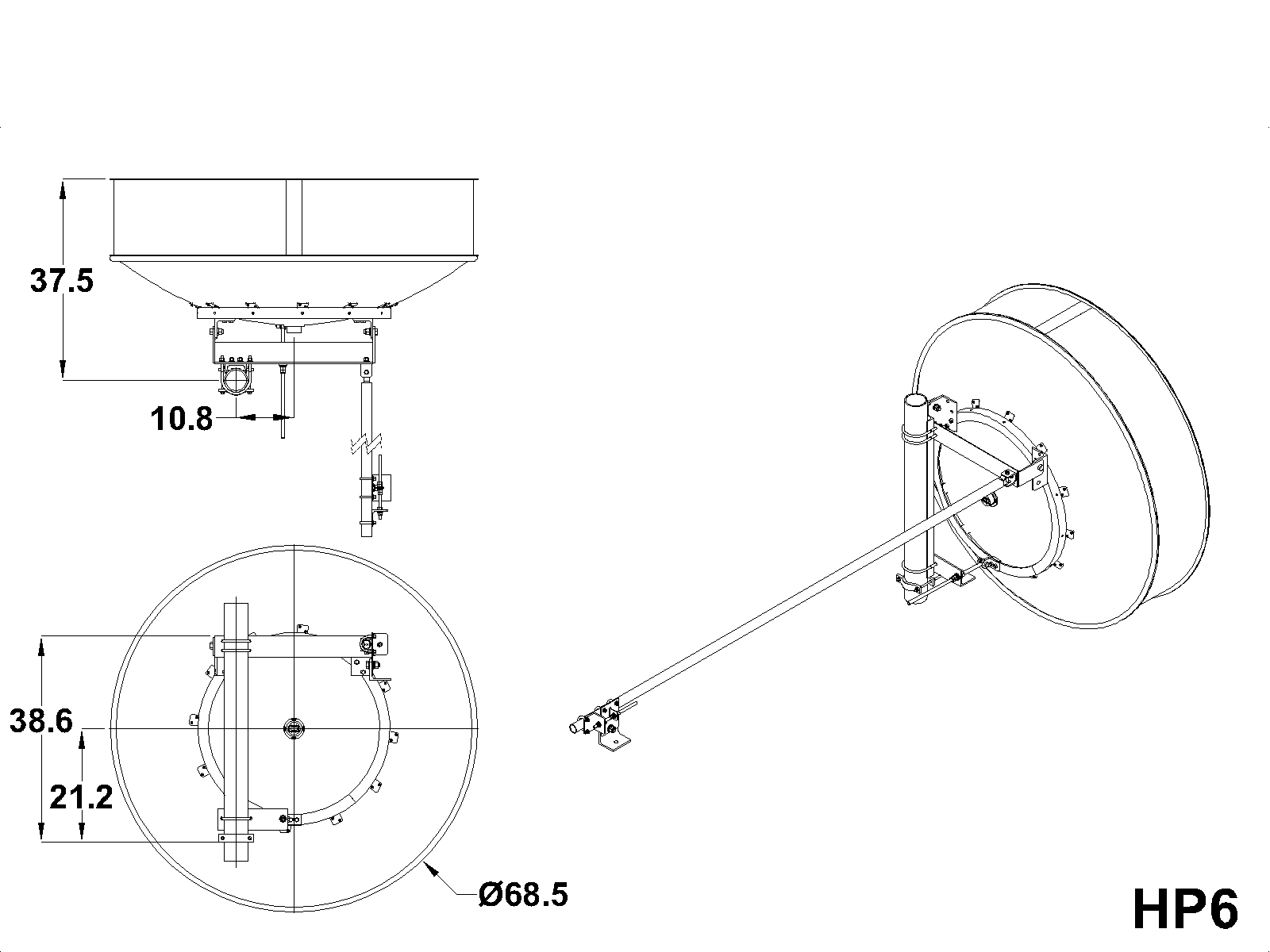

Technical Drawings

OL-HP6
