HPD2-5W

0.6 | 2 ft. High Performance Parabolic Reflector Antenna, Dual Polarized, 4.9-6GHz

HPD2-5W, HPD2-5WNS

The HP High Performance 5W Series by RadioWaves offers a cost effective, dual polarized, 2 ft parabolic antenna engineered to deliver reliable radio links with a stable 29.3 dBi gain and enhanced protection from link interference over 4.9 to 6 GHz.

Designed for U-NII-1, -2, -3, -4 and public safety applications, RadioWaves field-proven pre-assembled HP antennas and robust pole-mounts ensure “set and forget” installation with minimal post-installation maintenance.  If it’s rugged, it must be RadioWaves!

HP Wideband Family Datasheet


FEATURES AND BENEFITS

  • Gain of up to 29.3 dBi with low VSWR and high port isolation across the entire 4.9-6 GHz band
  • High Performance design offers reduced interference with 44 dB minimum front to back and suppressed side lobes
  • One antenna that covers the entire unlicensed 5 GHz U-NII-1, -2, -3, -4 and public safety bands
  • Fully powder-coated with rugged hardware built to survive the elements
  • Includes low-profile UV-protected radome
  • Dual N-type Connectors
  • Fully Preassembled at the Factory – Simplifies installation on site and guarantees “factory-tested” quality
  • Warranty – Industry leading 7-year warranty
Download Spec Sheet
HPD2-5W

General Specifications

Antenna Type
High Performance Parabolic Reflector Antenna
Size, nominal
2 ft | 0.6 m
Polarization
Dual

Electrical Specifications

Operating Frequency Band
4.9 - 6 GHz
Half Power Beamwidth, Horizontal
6.1 degrees
Half Power Beamwidth, Vertical
6.1 degrees
Cross-Polarization Discrimination
30 dB
Front to Back Ratio (F/B)
44 dB
Gain, Low Frequency
28 dBi
Gain, Mid Frequency
28.8 dBi
Gain, High Frequency
29.3 dBi
VSWR
1.5:1
Return Loss
-14 dB

Mechanical Specifications

Fine Azimuth Adjustment
+/- 10 degrees
Fine Elevation Adjustment
+/- 30 degrees
Mounting Pipe Diameter, Min
2 inch | 5.08 cm
Mounting Pipe Diameter, Max
4.5 inch | 11.4 cm
Net Weight
27 lbs | 12.3 kg
Wind Velocity Operational
90 mph | 145 km/h
Wind Velocity Survival Rating
125 mph | 201 km/h
Mechanical Configuration
HPD2
Axial Force (FA)
202 lbs | 899 N
Side Force (FS)
100 lbs | 445 N
Twisting Moment (MT)
194 ft-lbs | 263 Nm
Operating Temperature Range
-40 to +60C
Max Pressure, PSIG, (if waveguide interface)
5

Regulatory Compliance

Industry Canada Compliance
undeclared
RoHS-compliant
Yes

Shipping Information

Package Type
Cardboard
Gross Weight
48 lbs | 28.7 kg
Dimensions, L x W x H
31 x 31 x 25in | 79 x 79 x 64 cm
Shipping Volume
13.9 cu ft | 0.39 cu m

Additional Comments

Contact RadioWaves Sales for alternate RF interface options. RadioWaves specializes in direct connect solutions for microwave radios.

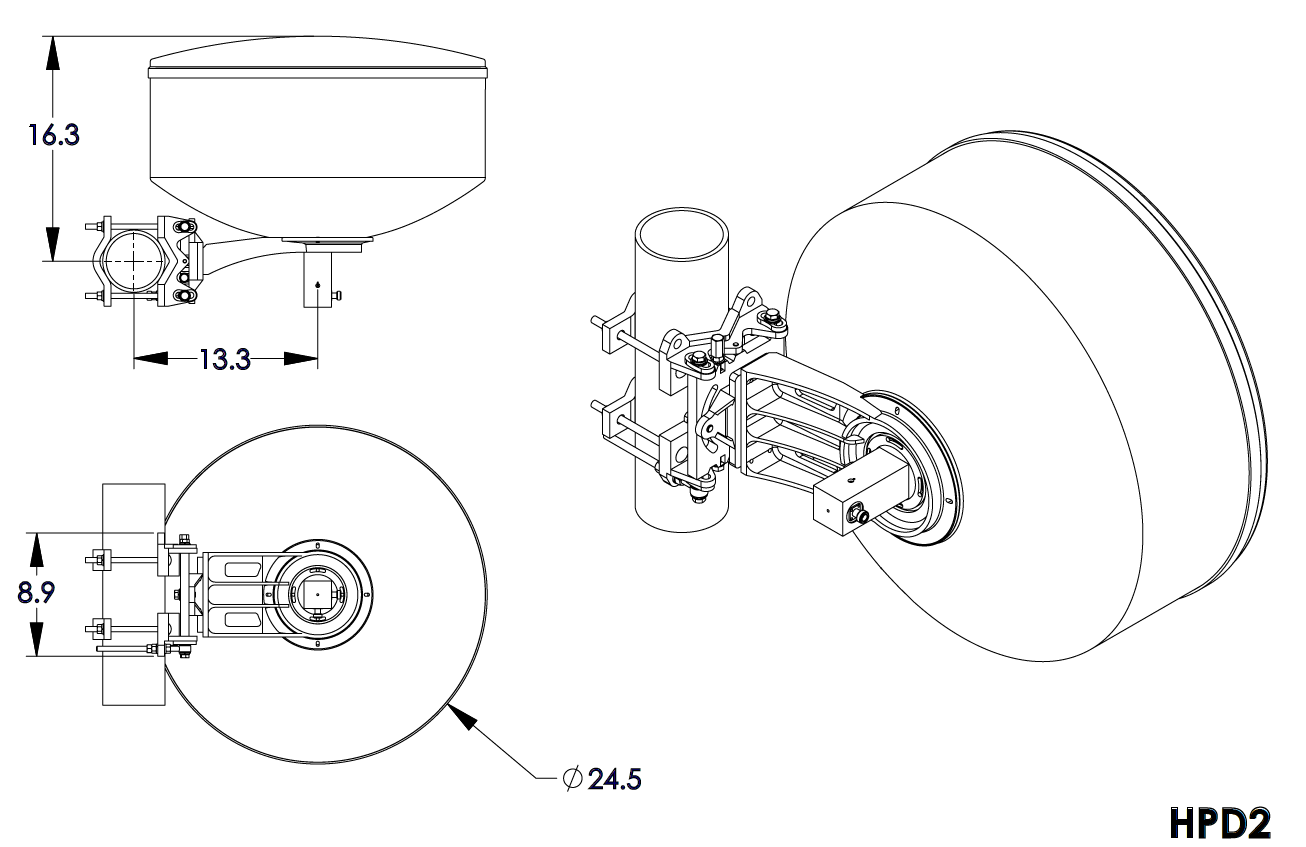

Technical Drawings

HPD2
Click to enlarge tooltip
