L1+L5 GPS/Timing Antenna, RHCP Polarized, 1.166 to 1.218 GHz | 1.559 to 1.606 GHz

GP-L1-L5-40-N, GP-L1-L5-40-N

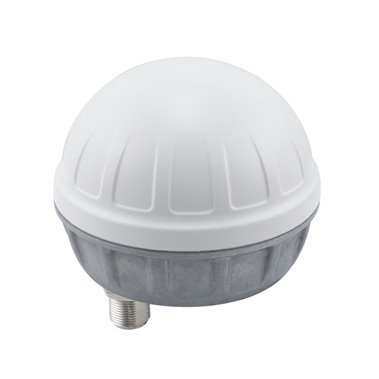

The GP-L1L5-40-N GPS Dual Band antenna recovers timing and positioning data for timing reference and phase synchronization. It filters and amplifies global positioning system signals received from GNSS, Galileo, GLONASS, BeiDou, QZSS, and IRNSS satellite constellations.
The GP-L1L5-40-N antenna is designed with an integrated 40 dB LNA and operates within the L5 1.166 to 1.216 GHz and L1 1.559 to 1.606 GHz bands. Increased position accuracy in densely populated urban canyons, flexible installation, and improved system security; are all advantages of this design.

The GP-L1L5-40-N GPS is compatible with several existing mounting brackets. It is fully ruggedized unit and IP67 Rated. The LNA is DC fed through the Type N Female connector and is externally grounded.

Download Spec Sheet

General Specifications

Antenna Type
GPS Antennas
Size, nominal
0.5 ft | 0.15 m

Electrical Specifications

Operating Frequency Band
1.166 - 1.218 GHz
1.559 - 1.606 GHz
Half Power Beamwidth, Horizontal
360 degrees
360 degrees
Gain, Mid Frequency
40 dBi
40 dBi

Mechanical Specifications

Mounting Pipe Diameter, Min
1 inch | 2.5 cm
Mounting Pipe Diameter, Max
2 inch | 5.1 cm
Net Weight
0.9 lbs | 0.4 kg
Wind Velocity Operational
90 mph | 145 km/h
Wind Velocity Survival Rating
125 mph | 201 km/h
Mechanical Configuration
Operating Temperature Range
-40 to +60 C
Ingress Protection

Regulatory Compliance

Industry Canada Compliance

Shipping Information

Package Type
Gross Weight
2.2 lbs | 0 kg
Dimensions, L x W x H
0 x 0 x 0in | 0 x 0 x 0 cm
Shipping Volume
0 cu ft | 0 cu m

Additional Comments

Dual Band L1 and L5 GPS Timing Antenna

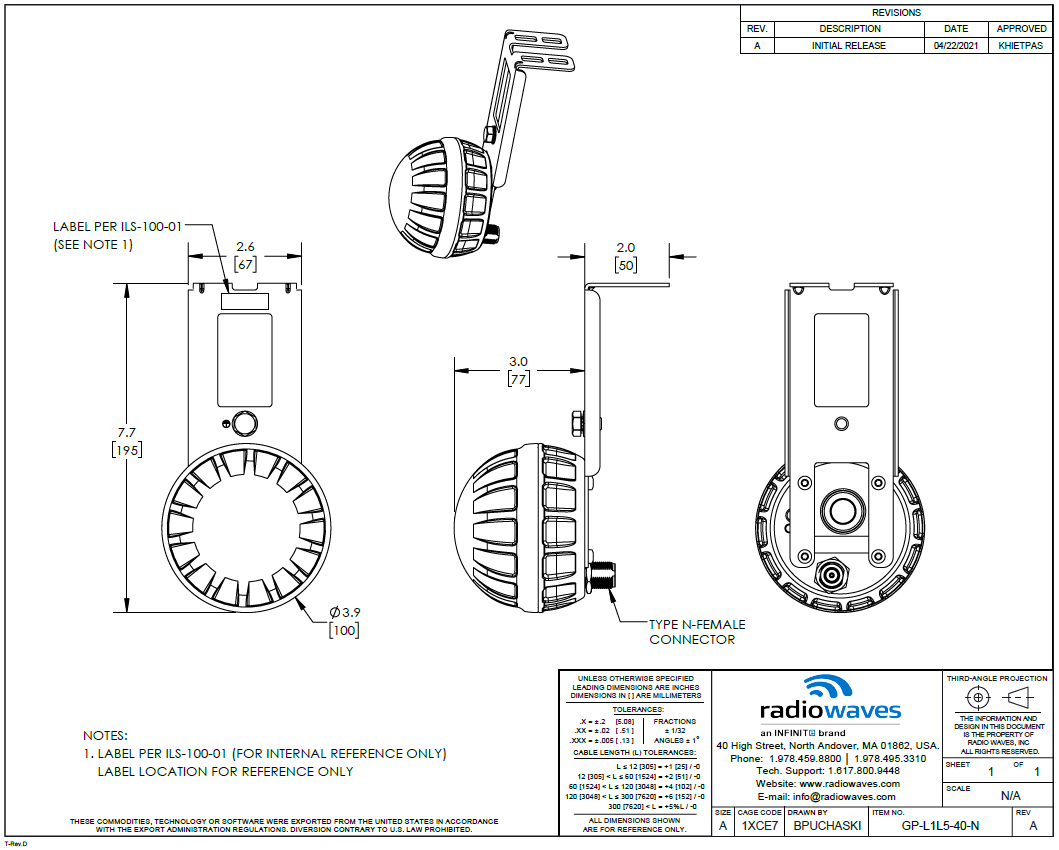

Technical Drawings

Click to enlarge tooltip
