0.3 m | 1 ft Flat Panel Antenna, Dual-polarized, 5.15-5.85GHz

The FP Flat Panel Series by RadioWaves offers a full line of high performance flat panel antennas engineered for superior performance within a low profile aesthetically pleasing form factor.  Ideal for Point to Point applications where form factor is a concern, RadioWaves field-proven pre-assembled antennas and robust easy to install mounting system ensure “set and forget” installation with minimal post-installation maintenance.  If it’s rugged, it must be RadioWaves!

FEATURES AND BENEFITS
O High Performance Flat Panel Antennas – Excellent performance in an aesthetically pleasing form factor
O Fully Preassembled at the Factory – Simplifies installation on site and guarantees “factory-tested” quality

Download Spec Sheet
FPD1-5-24

General Specifications

Antenna Type
Flat Panel Antenna
Size, nominal
1 ft | 0.3 m
Polarization
Dual

Electrical Specifications

Operating Frequency Band
5.15 - 5.85 GHz
Half Power Beamwidth, Horizontal
20 degrees
Half Power Beamwidth, Vertical
20 degrees
Cross-Polarization Discrimination
20 dB
Front to Back Ratio (F/B)
40 dB
Gain, Low Frequency
22.4 dBi
Gain, Mid Frequency
23 dBi
Gain, High Frequency
23.5 dBi
VSWR
1.7:1
Return Loss
-12 dB

Mechanical Specifications

Fine Elevation Adjustment
+/- 10 degrees
Mounting Pipe Diameter, Min
2 inch | 5.09 cm
Mounting Pipe Diameter, Max
2.5 inch | 6.4 cm
Net Weight
5 lbs | 2.3 kg
Wind Velocity Operational
90 mph | 145 km/h
Wind Velocity Survival Rating
125 mph | 201 km/h
Mechanical Configuration
FPD1-5-24
Axial Force (FA)
49 lbs | 220 N
Side Force (FS)
0 lbs | 0 N
Twisting Moment (MT)
0 ft-lbs | 0 Nm
Operating Temperature Range
-40 to +60 C

Regulatory Compliance

FCC
undeclared
Industry Canada Compliance
undeclared
ETSI
undeclared
RoHS-compliant
Yes

Shipping Information

Package Type
Cardboard
Gross Weight
8 lbs | 3.6 kg
Dimensions, L x W x H
16 x 16 x 5in | 40 x 40 x 12 cm
Shipping Volume
0.7 cu ft | 0.02 cu m

Additional Comments

*Additional OEM interfaces and adapters may be available. Contact RadioWaves for a complete and current list of available adapters.

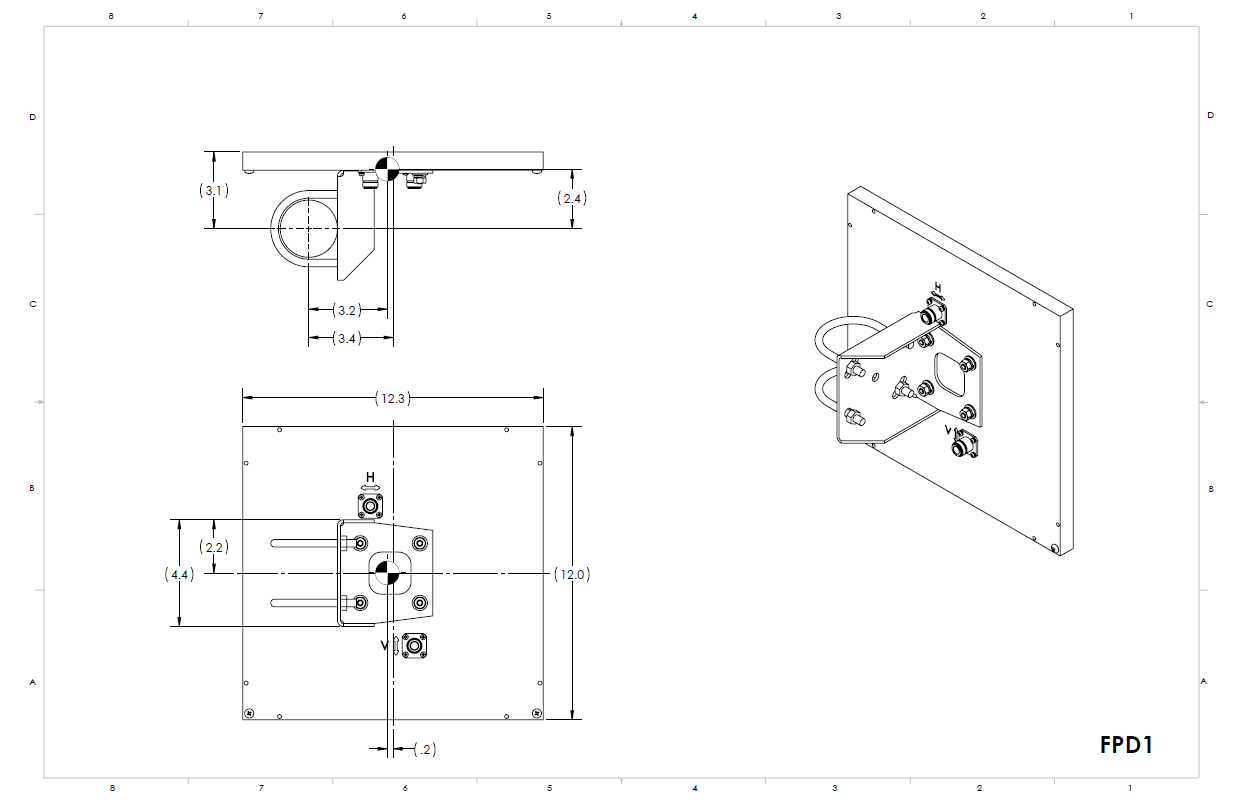

Technical Drawings

FPD1-5-24
