FPD1-3.5-14

0.3m | 1ft. Flat Panel Antenna, Dual-Polarized, 3.3-4.2GHz

FPD1-3.5-14, FPD1-3.5-14

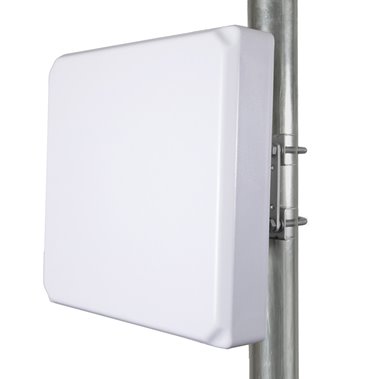

The RadioWaves high performance flat panel antenna FPD1-3.5-14 is engineered for superior performance  rugged environments with a low profile aesthetically pleasing design. Measuring 7.5" x 7.5" this antenna is extremely compact and toughened to stand up to all environments.

The FPD1-3.5-14 has 7.5 to 9 dBi gain, features 45° Horizontal Beamwidth and 40° Vertical Beamwidth patterns with Vertical + Horizontal polarization and includes 2 x Type N Female connectors. The 3500-4200 MHz FPD1-3.5-14 is rugged, weatherproof and features a heavy-duty UV-resistant plastic radome for all-weather operation.

The FPD1-3.5-14 is ideal for Point to Point applications where form factor is a concern and coverage of extended CBRS is necessary. The 2 x Type N Female connectorized FPD1-3.5-14 antenna from RadioWaves has mounting bracket and hardware for ease of installation.

Features

  • Dual Polarity feed system in single enclosure
  • Includes tilt and swivel mast mounting
  • Two integral N-Female connectors
  • UV-resistant radome for all-weather operation
  • MIMO - Multiple-Input and Multiple-Output

Applications

  • 3.5 GHz Band Applications
  • SOFDMA
  • CBRS and Extended CBRS
  • Wireless Internet Provider "cell" sites
  • Wireless LAN systems & IEEE 802.16e Applications
Download Spec Sheet
FPD1-3.5-14

General Specifications

Antenna Type
Flat Panel Antenna
Size, nominal
1 ft | 0.3 m
Polarization
Dual

Electrical Specifications

Operating Frequency Band
3.3 - 4.2 GHz
Half Power Beamwidth, Horizontal
45 degrees
Half Power Beamwidth, Vertical
40 degrees
Front to Back Ratio (F/B)
25 dB
Gain, Mid Frequency
14 dBi
VSWR
2.0:1
Return Loss
-10 dB
Port to Port Isolation, Max (dB)
25 dB

Mechanical Specifications

Fine Elevation Adjustment
+/- 10 degrees
Mounting Pipe Diameter, Min
2 inch | 5.1 cm
Mounting Pipe Diameter, Max
2.5 inch | 6.4 cm
Net Weight
5 lbs | 2.3 kg
Wind Velocity Operational
90 mph | 145 km/h
Wind Velocity Survival Rating
125 mph | 201 km/h
Mechanical Configuration
FPD1-3-5
Axial Force (FA)
49 lbs | 220 N
Operating Temperature Range
-40 to +60 C

Regulatory Compliance

Industry Canada Compliance
undeclared
RoHS-compliant
Yes

Shipping Information

Package Type
Cardboard
Gross Weight
8 lbs | 1.8 kg
Dimensions, L x W x H
12 x 12 x 6in | 40 x 40 x 12 cm
Shipping Volume
0.7 cu ft | 0.02 cu m

Additional Comments

Contact RadioWaves for alternate RF interface options.

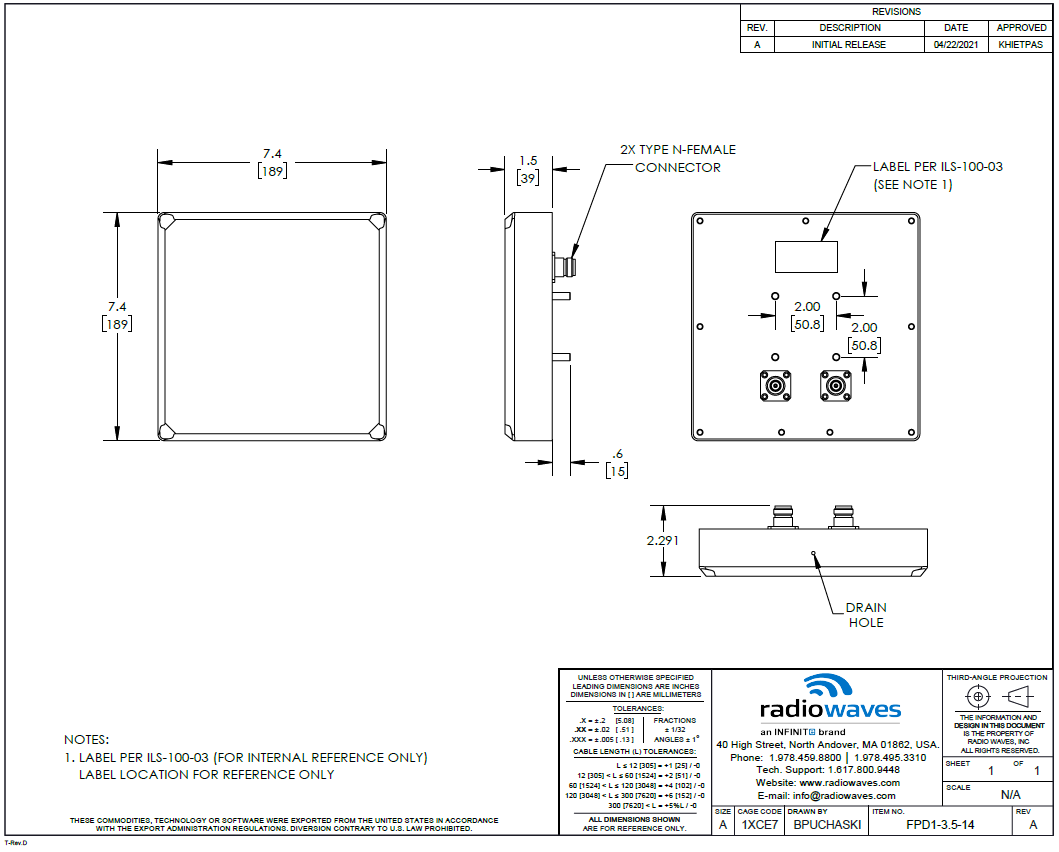

Technical Drawings

FPD1-3-5
