0.15m | 0.5ft Flat Panel Antenna, Dual-Polarized, 5.15-5.85GHz

FPD.5-5-18v2, FPD.5-5-18v2

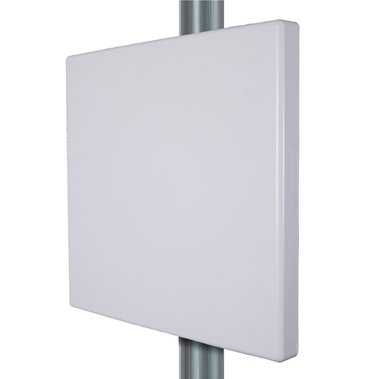

The RadioWaves high performance flat panel antenna FPD.5-5-18v2 is engineered for superior performance and  designed for rugged environments with a low profile, aesthetically pleasing design. Measuring 10" x 10" this antenna is extremely compact and toughened to stand up to all environments.

The FPD.5-5-18v2 has 18 dBi gain, 17° Horizontal Beamwidth and 17° Vertical Beamwidth patterns with Vertical + Horizontal polarization and features 2 x Type N Female connectors. The 5150-5850 MHz FPD.5-5-18v2 is rugged and weatherproof and features a heavy-duty UV-resistant plastic radome for all-weather operation.

The FPD.5-5-18v2 is ideal for Point-to-Point applications in WLAN, public safety and UNII applications. The 2 x Type N Female connectorized FPD.5-5-18v2 antenna includes mounting bracket and hardware for ease of installation.


  • Dual polarity feed system in single enclosure
  • Includes tilt and swivel mast mounting
  • Two integral N-Female connectors
  • UV-resistant radome for all-weather operation
  • MIMO - Multiple-Input and Multiple-Output


  • 5.3 GHz, 5.4 GHz and 5.8 GHz band applications
  • IEEE 802.11a Wireless LAN
  • 5.8GHz UNII and ISM applications
  • Unlicensed European 5.4 GHz band applications
  • WiMAX technology
  • Wi-Fi systems
  • 5.8 GHz wireless video systems
Download Spec Sheet

General Specifications

Antenna Type
Flat Panel Antenna
Size, nominal
0.5 ft | 0.15 m

Electrical Specifications

Operating Frequency Band
5.15 - 5.85 GHz
Half Power Beamwidth, Horizontal
17 degrees
Half Power Beamwidth, Vertical
17 degrees
Front to Back Ratio (F/B)
30 dB
Gain, Mid Frequency
18 dBi
Return Loss
-10 dB
Port to Port Isolation, Max (dB)
28 dB

Mechanical Specifications

Fine Elevation Adjustment
+/- 10 degrees
Mounting Pipe Diameter, Min
2 inch | 5.1 cm
Mounting Pipe Diameter, Max
2.5 inch | 6.4 cm
Net Weight
3 lbs | 1.4 kg
Wind Velocity Operational
90 mph | 145 km/h
Wind Velocity Survival Rating
125 mph | 201 km/h
Mechanical Configuration
Axial Force (FA)
62 lbs | N
Operating Temperature Range
-40 to +60 C

Regulatory Compliance

Industry Canada Compliance

Shipping Information

Package Type
Gross Weight
4 lbs | 1.1 kg
Dimensions, L x W x H
16 x 16 x 6in | 27 x 27 x 17 cm
Shipping Volume
0.5 cu ft | 0.01 cu m

Additional Comments

Contact RadioWaves for alternate RF interface options.

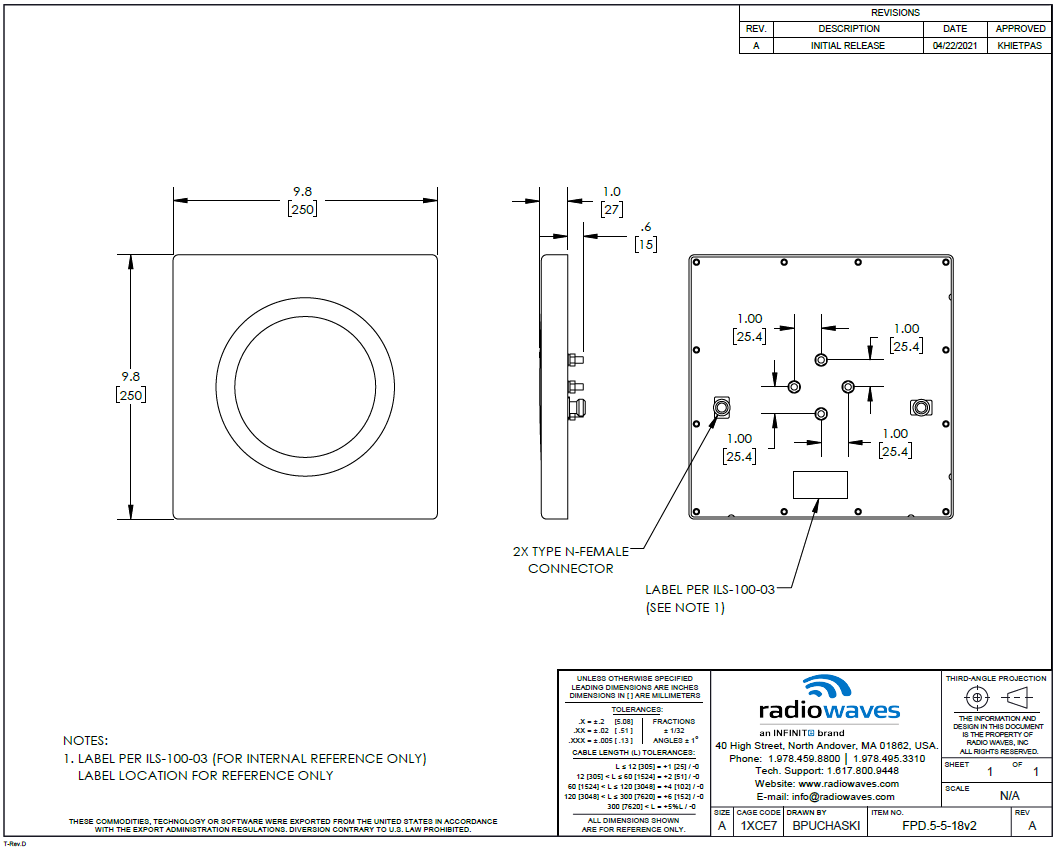

Technical Drawings

Click to enlarge tooltip
