RFK-OEM-SC-3-18

Retrofit Kit for 3' (0.9M) Parabolic, Upgrade Existing Direct Mount to SIAE AlfoPlus2, 17.7 to 19.7 GHz

SIAE, AlfoPlus2

The Parabolic Reflector Retrofit Kits by RadioWaves allow previously deployed Antennas to be upgraded to the latest radios on the market. These kits come with new feed horns, interface, and mounting hardware needed for rapid installation, under budget!


The RFK-OEM-SC-3-18 will allow you to directly interface an existing direct mount HP3 parabolic antenna to a SIAE AlfoPlus2 series radio. This kit is designed for 3 ft | 0.9 m reflectors to be coupled with radios operating from 17.7 GHz to 19.7 GHz Frequency range with Single Polarization Rectangular waveguide interface. If it’s rugged, it must be RadioWaves!

RFK-OEM-SC-3-18

General Specifications

Antenna Type Parabolic Reflector Retrofit Kit
Size, nominal 3 ft | 0.9 m
Waveguide Circular
Radio Manufacturer SIAE
Polarization Single

Electrical Specifications

Operating Frequency Band 17.7 GHz to 19.7 GHz

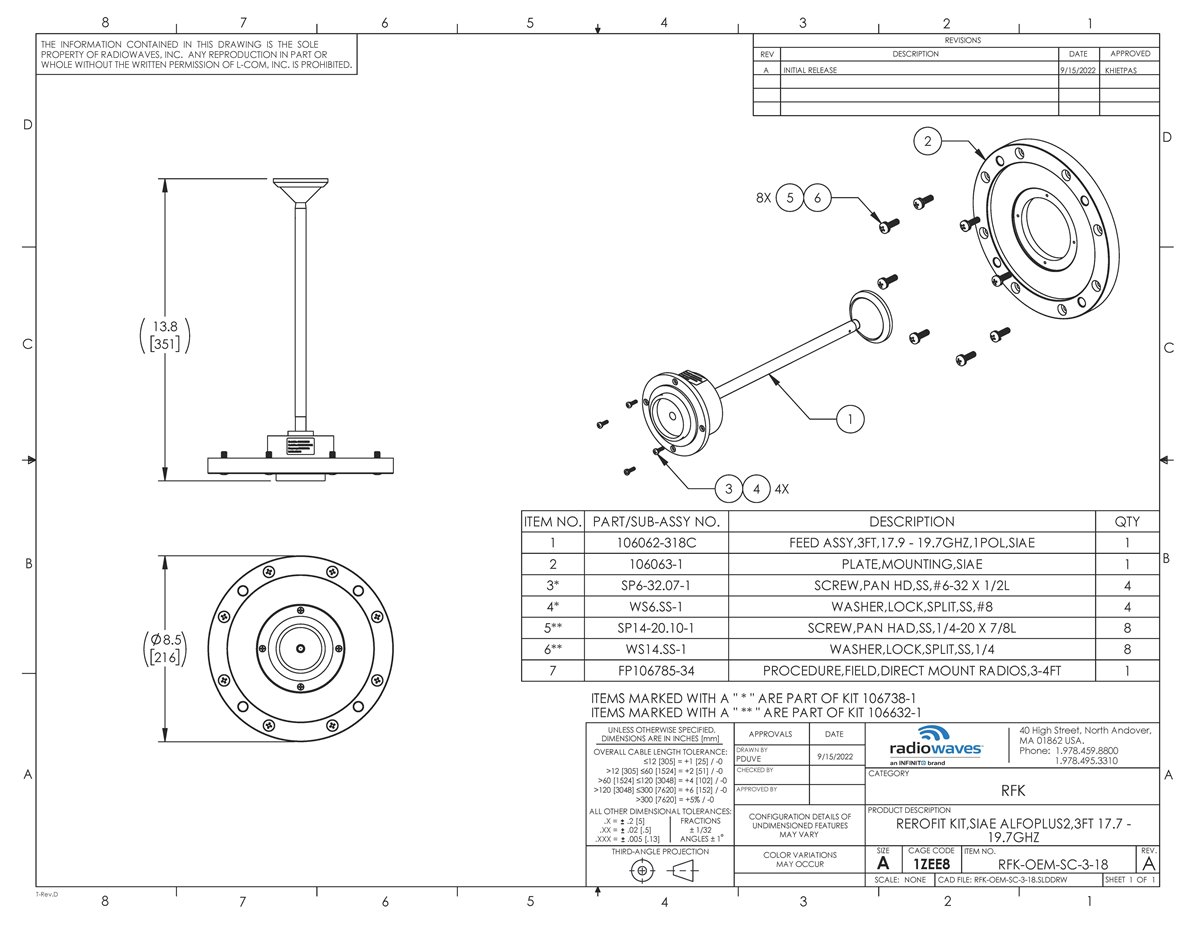

Technical Drawings

RFK-OEM-SC-3-18_revA
