RFK-OEM-RSDI-3-6

Retrofit Kit for 3' (0.9M) Parabolic, Upgrade Existing RS or NS to Dual Polarized CPR-137G Flange, 5.725 to 7.125 GHz

Dual Polarized, CPR-137G

The Parabolic Reflector Retrofit Kits by RadioWaves allow previously deployed Antennas to be upgraded to the latest radios on the market. These kits come with new feed horns, interface, and mounting hardware needed for rapid installation, under budget!


The RFK-OEM-RSDI-3-6 will allow you to directly interface an existing direct mount HP3 parabolic antenna to a CPR-137G radio. This kit is designed for 3 ft | 0.9 m reflectors to be coupled with radios operating from 5.725 GHz to 7.125 GHz Frequency range with Dual Polarization Rectangular waveguide interface. If it’s rugged, it must be RadioWaves!

Download Spec Sheet
RFK-OEM-RSDI-3-6

General Specifications

Antenna Type Parabolic Reflector Retrofit Kit
Size, nominal 3 ft | 0.9 m
Waveguide Rectangular
Polarization Dual

Electrical Specifications

Operating Frequency Band 5.725 GHz to 7.125 GHz

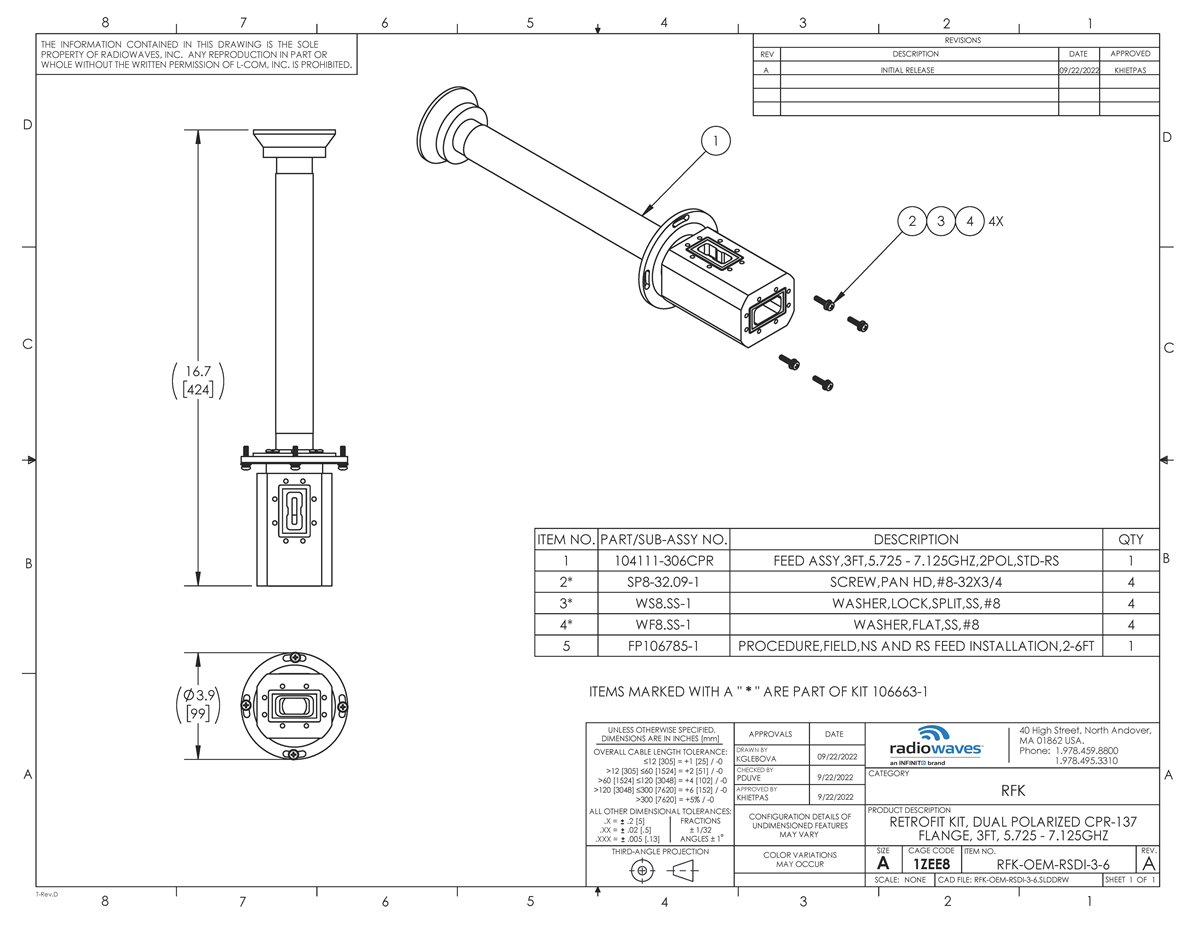

Technical Drawings

RFK-OEM-RSDI-3-6_revA
