RFK-OEM-R-4-6

Retrofit Kit for 4' (1.2M) Parabolic, Upgrade Existing Direct Mount to Remec Circular, 5.725 to 7.125 GHz

Remec

The Parabolic Reflector Retrofit Kits by RadioWaves allow previously deployed Antennas to be upgraded to the latest radios on the market. These kits come with new feed horns, interface, and mounting hardware needed for rapid installation, under budget!


The RFK-OEM-R-4-6 will allow you to directly interface an existing direct mount HP4 parabolic antenna to a Remec series radio. This kit is designed for 4 ft | 1.2 m reflectors to be coupled with radios operating from 5.725 GHz to 7.125 GHz Frequency range with Single Polarization Circular waveguide interface. If it’s rugged, it must be RadioWaves!

Download Spec Sheet
RFK-OEM-R-4-6

General Specifications

Antenna Type Parabolic Reflector Retrofit Kit
Size, nominal 4 ft | 1.2 m
Waveguide Circular
Radio Manufacturer Remec
Polarization Single

Electrical Specifications

Operating Frequency Band 5.725 GHz to 7.125 GHz

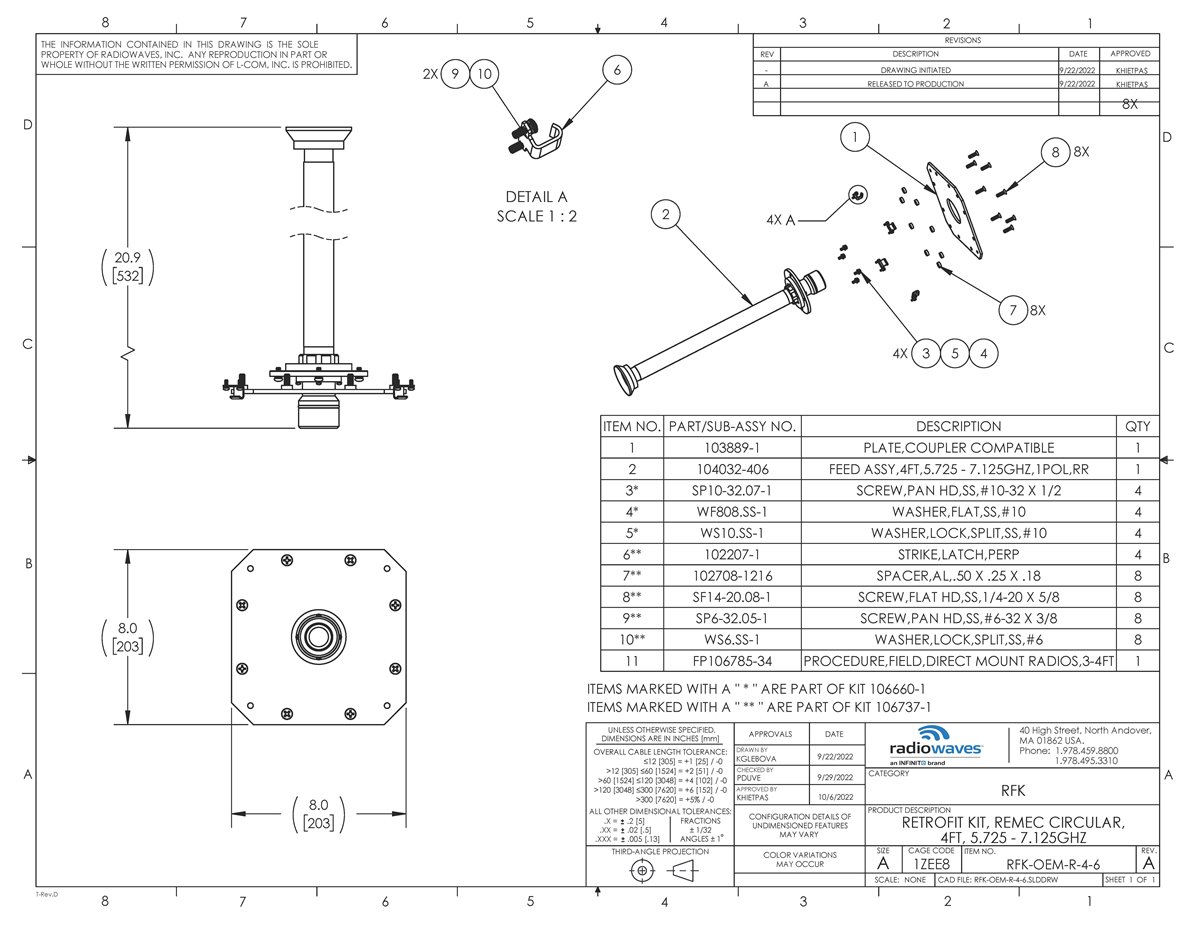

Technical Drawings

RFK-OEM-R-4-6_revA
Click to enlarge tooltip
