HP3-1011

0.9 m | 3 ft High Performance Parabolic Reflector Antenna, Single-polarized, 10.15-11.7GHz

HP3-1011, HP3-1011RS

The HP High Performance Series by RadioWaves offers a full line of high performance parabolic antennas engineered to provide ETSI class 2/3 radiation pattern performance as well as excellent gain.  RadioWaves field-proven pre-assembled antennas and robust pole-mounts ensure “set and forget” installation with minimal post-installation maintenance.  The included radome ensures robust and reliable performance under the most challenging conditions.  If it’s rugged, it must be RadioWaves!


FEATURES AND BENEFITS
O High Performance ETSI Class 2/3* Parabolic Antennas – Excellent performance for a wide range of applications
O Fully Preassembled at the Factory – Simplifies installation on site and guarantees “factory-tested” quality

*ETSI Class depends on frequency band

Download Spec Sheet
HP3-1011

General Specifications

Antenna Type
High Performance Parabolic Reflector Antenna
Size, nominal
3 ft | 0.9 m
Polarization
Single

Electrical Specifications

Operating Frequency Band
10.15 - 11.7 GHz
Half Power Beamwidth, Horizontal
2.6 degrees
Half Power Beamwidth, Vertical
2.6 degrees
Cross-Polarization Discrimination
30 dB
Front to Back Ratio (F/B)
56 dB
Gain, Low Frequency
36.6 dBi
Gain, Mid Frequency
37.1 dBi
Gain, High Frequency
37.8 dBi
VSWR
1.37:1
Return Loss
-16.1 dB

Mechanical Specifications

Fine Azimuth Adjustment
+/- 10 degrees
Fine Elevation Adjustment
+/- 10 degrees
Mounting Pipe Diameter, Min
2.5 inch | 5.1 cm
Mounting Pipe Diameter, Max
4.5 inch | 11.4 cm
Net Weight
50 lbs | 12.3 kg
Wind Velocity Operational
90 mph | 145 km/h
Wind Velocity Survival Rating
125 mph | 201 km/h
Mechanical Configuration
HP3
Axial Force (FA)
403 lbs | 1792 N
Side Force (FS)
200 lbs | 890 N
Twisting Moment (MT)
344 ft-lbs | 466 Nm
Operating Temperature Range
-40 to +60 C
Max Pressure, PSIG, (if waveguide interface)
5

Regulatory Compliance

FCC
Part 101 Cat. A
Industry Canada Compliance
SRSP310.5
ETSI
302217 R1 C3
RoHS-compliant
Yes

Shipping Information

Package Type
Wood Crate
Gross Weight
143 lbs | 69.8 kg
Dimensions, L x W x H
47 x 28 x 48in | 119 x 71 x 122 cm
Shipping Volume
36.56 cu ft | 1.04 cu m

Additional Comments

*Additional OEM interfaces and adapters may be available. Contact RadioWaves for a complete and current list of available adapters.

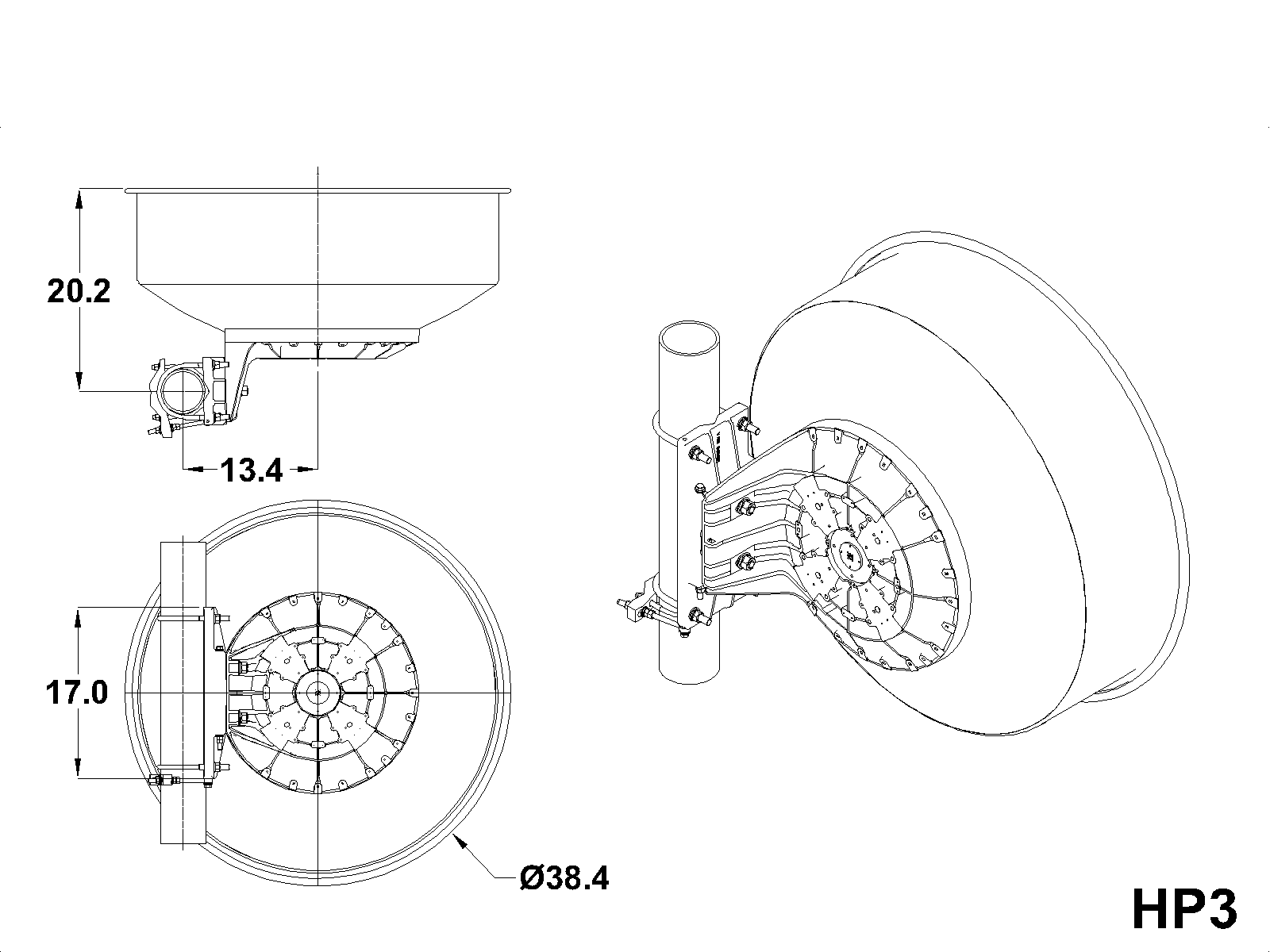

Technical Drawings

OL-HP3
