SEC-4.7D-90-14

90 Degree, 14 dBi Sector Antenna, Dual-Polarized, 4.4 to 5GHz

SEC-4.7D-90-14, SEC-4.7D-90-14

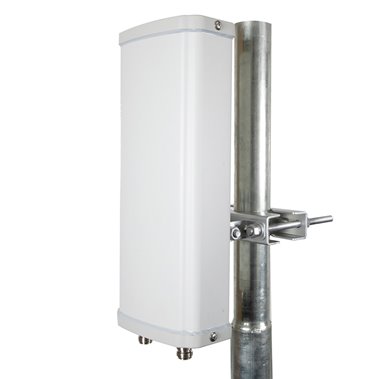

The RadioWaves SEC-4.7D-90-14 high performance sector antenna is specifically designed for Military and Public Safety and has 13 to 15 dBi of gain. Measuring 12" x 5", the SEC-4.7D-90-14 antenna is extremely compact and fortified to stand up to all environments.

The SEC-4.7D-90-14 has 90° Horizontal Beamwidth and 15° Vertical Beamwidth patterns with Vertical + Horizontal polarization and features 2 x Type N Female connectors. The 2-port SEC-4.7D-90-14 is rugged and weatherproof and features a heavy-duty UV-resistant plastic radome for all-weather operation.

The SEC-4.7D-90-14 operates from 4400 to 5000 MHz which is ideal for Point-to-Multipoint coverage in Military and Public Safety applications. The 2 x Type N Female connectorized SEC-4.7D-90-14 includes mounting bracket and hardware for ease of installation.

Features

  • Dual polarity feed system in single enclosure
  • Includes tilt and swivel mast mounting
  • Two integral N-Female connectors
  • UV-resistant radome for all-weather operation
  • MIMO - Multiple-Input and Multiple-Output

Applications

  • 4.4 GHz Military bands
  • 4.9 GHz Public Safety bands
  • 5G applications
  • Wireless Internet Services
Download Spec Sheet
SEC-4.7D-90-14

General Specifications

Antenna Type
Sector Antenna
Size, nominal
1 ft | 0.3 m
Polarization
Dual

Electrical Specifications

Operating Frequency Band
4.4 - 5 GHz
Half Power Beamwidth, Horizontal
90 degrees
Half Power Beamwidth, Vertical
15 degrees
Cross-Polarization Discrimination
25 dB
Front to Back Ratio (F/B)
20 dB
Gain, Low Frequency
13 dBi
Gain, Mid Frequency
14 dBi
Gain, High Frequency
15 dBi
VSWR
2.0:1
Return Loss
-10 dB
Port to Port Isolation, Max (dB)
25 dB

Mechanical Specifications

Fine Elevation Adjustment
+/- 5 degrees
Mounting Pipe Diameter, Min
2 inch | 5.1 cm
Mounting Pipe Diameter, Max
4.5 inch | 11.4 cm
Net Weight
5 lbs | 2.3 kg
Wind Velocity Operational
90 mph | 145 km/h
Wind Velocity Survival Rating
125 mph | 201 km/h
Mechanical Configuration
SEC-4-7D
Axial Force (FA)
85 lbs | 378 N
Side Force (FS)
32 lbs | 142 N
Operating Temperature Range
-40 to +60 C

Regulatory Compliance

Industry Canada Compliance
undeclared
RoHS-compliant
Yes

Shipping Information

Package Type
Cardboard
Gross Weight
4 lbs | 1.6 kg
Dimensions, L x W x H
6 x 14 x 9in | 30 x 68 x 20 cm
Shipping Volume
1.5 cu ft | 0.04 cu m

Additional Comments

Contact RadioWaves for alternate RF interface options.

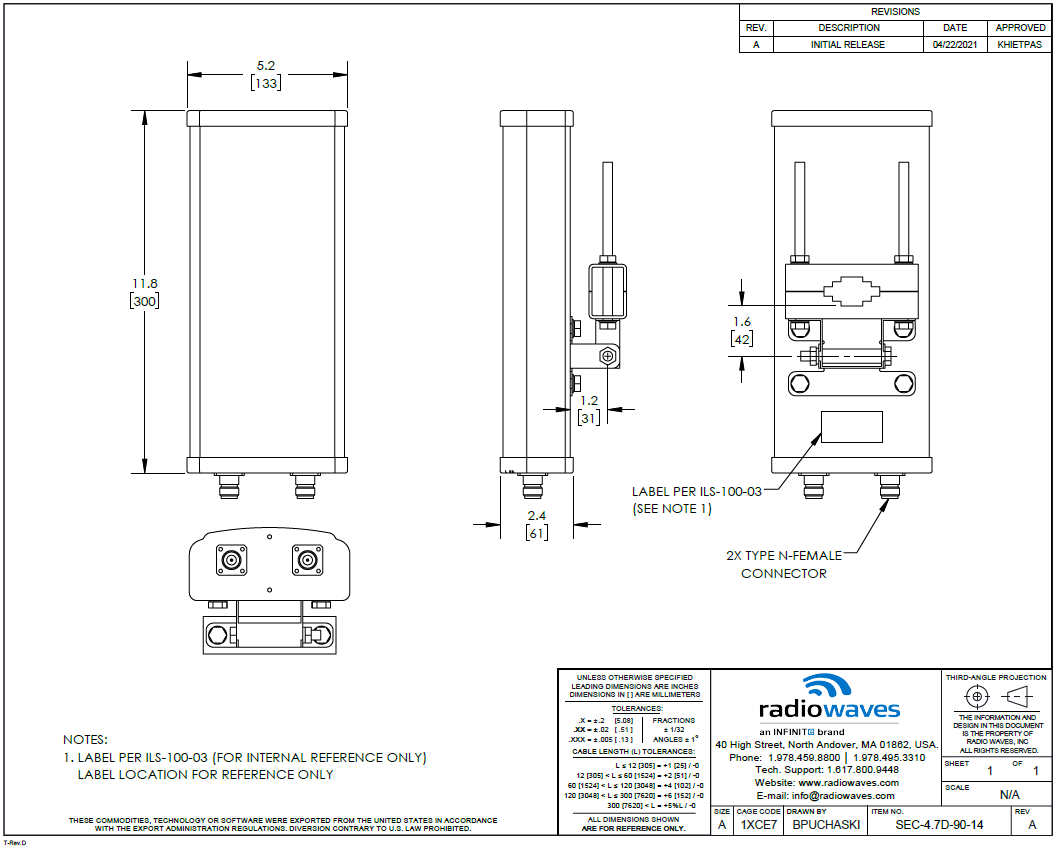

Technical Drawings

SEC-4-7D
Click to enlarge tooltip
