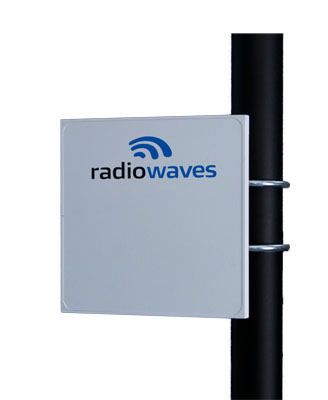

0.15 m | 0.5 ft Flat Panel Antenna, Single-polarized, 5.15-5.85GHz

The FP Flat Panel Series by RadioWaves offers a full line of high performance flat panel antennas engineered for superior performance within a low profile aesthetically pleasing form factor.  Ideal for Point to Point applications where form factor is a concern, RadioWaves field-proven pre-assembled antennas and robust easy to install mounting system ensure “set and forget” installation with minimal post-installation maintenance.  If it’s rugged, it must be RadioWaves!

FEATURES AND BENEFITS
O High Performance Flat Panel Antennas – Excellent performance in an aesthetically pleasing form factor
O Fully Preassembled at the Factory – Simplifies installation on site and guarantees “factory-tested” quality

Download Spec Sheet
FP.5-5-18

General Specifications

Antenna Type
Flat Panel Antenna
Size, nominal
0.5 ft | 0.15 m
Polarization
Single

Electrical Specifications

Operating Frequency Band
5.15 - 5.85 GHz
Half Power Beamwidth, Horizontal
25 degrees
Half Power Beamwidth, Vertical
25 degrees
Cross-Polarization Discrimination
25 dB
Front to Back Ratio (F/B)
35 dB
Gain, Low Frequency
17.4 dBi
Gain, Mid Frequency
18 dBi
Gain, High Frequency
18.5 dBi
VSWR
1.4:1
Return Loss
-15.5 dB

Mechanical Specifications

Fine Azimuth Adjustment
Supplied with coarse az adjust only
Fine Elevation Adjustment
+/- 10 degrees
Mounting Pipe Diameter, Min
2 inch | 5.1 cm
Mounting Pipe Diameter, Max
2.5 inch | 6.4 cm
Net Weight
3 lbs | 1.4 kg
Wind Velocity Operational
90 mph | 145 km/h
Wind Velocity Survival Rating
125 mph | 201 km/h
Mechanical Configuration
FP.5
Axial Force (FA)
14 lbs | 62 N
Side Force (FS)
0 lbs | 0 N
Twisting Moment (MT)
0 ft-lbs | 0 Nm
Operating Temperature Range
-40 to +60 C
Max Pressure, PSIG, (if waveguide interface)
na

Regulatory Compliance

FCC
undeclared
Industry Canada Compliance
undeclared
ETSI
undeclared
RoHS-compliant
Yes

Shipping Information

Package Type
Cardboard
Gross Weight
4 lbs | 1.8 kg
Dimensions, L x W x H
11 x 11 x 7in | 27 x 27 x 17 cm
Shipping Volume
0.5 cu ft | 0.01 cu m

Additional Comments

*Additional OEM interfaces and adapters may be available. Contact RadioWaves for a complete and current list of available adapters.

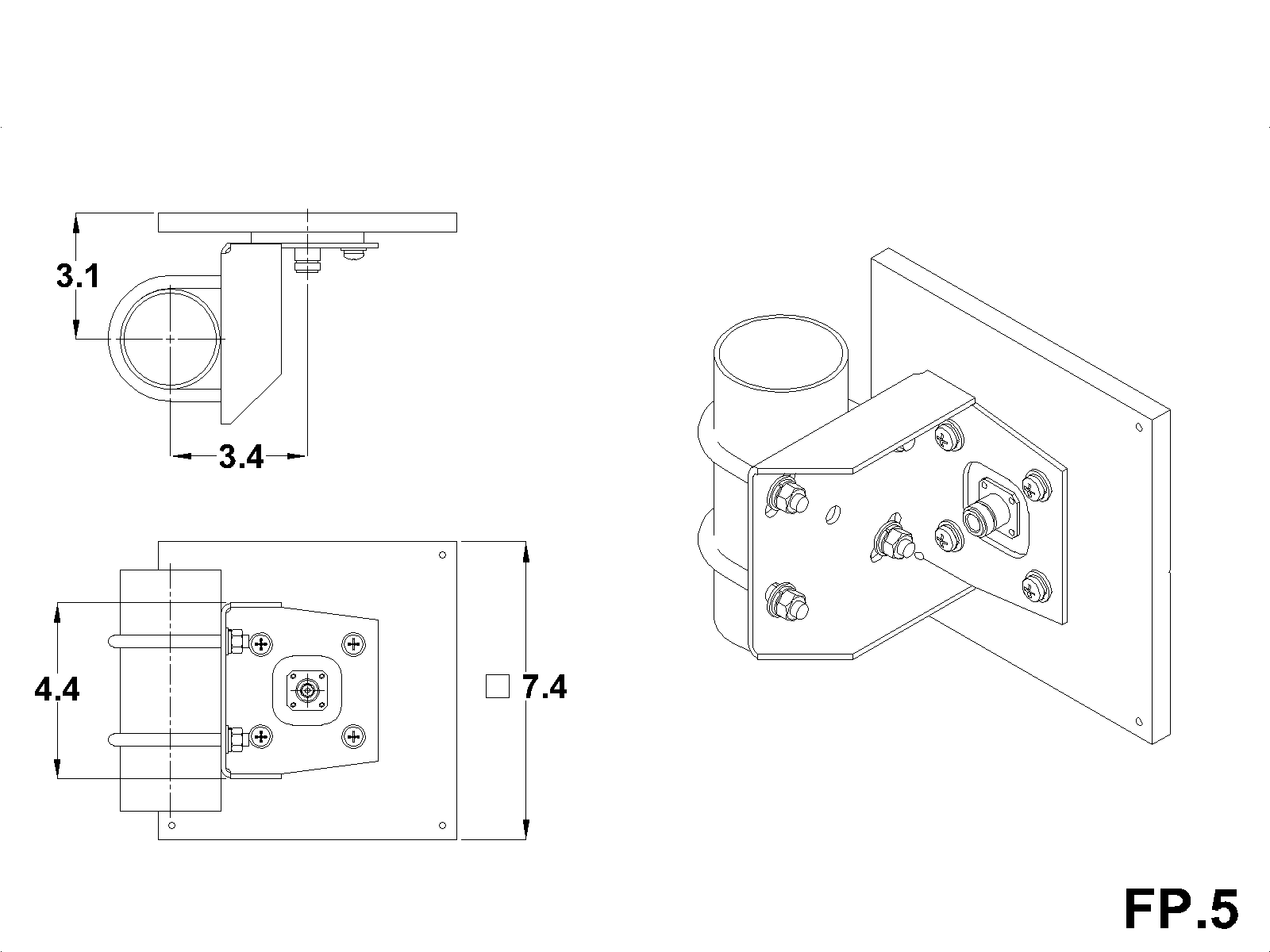

Technical Drawings

OL-FP
Click to enlarge tooltip
